Battery Current Sensor & Battery Temperature Sensor: Removal

Disconnect the ground cable from battery.
Remove the battery terminal boot.

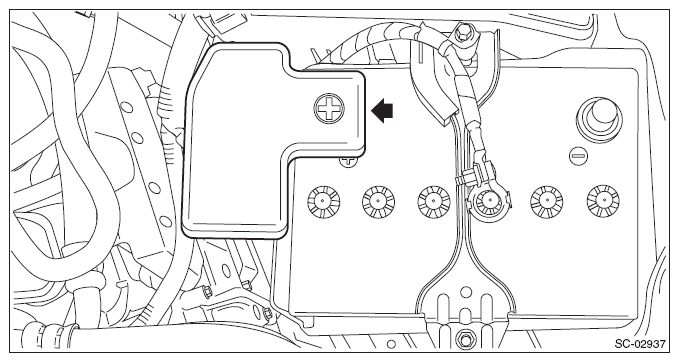

Fig 1: Locating Battery Terminal Boot
Courtesy of SUBARU OF AMERICA, INC.
Remove the nut which holds the battery current & temperature sensor.
CAUTION:
- Hold the terminal bracket with your hand when loosening the nut to avoid deforming the bracket.
- While working, be sure to protect metal parts with cloth.

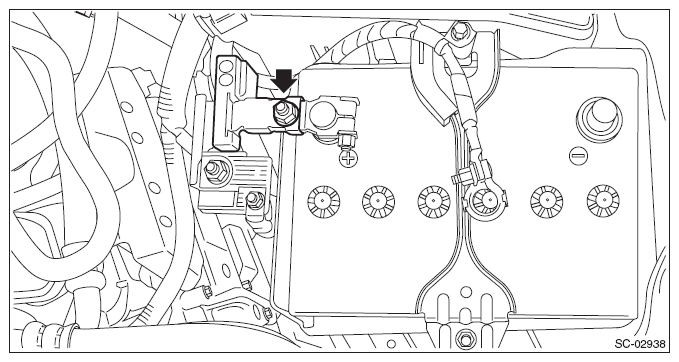

Fig 2: Locating Nut Of Battery Current And Temperature Sensor
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connectors from the battery current & temperature sensor.

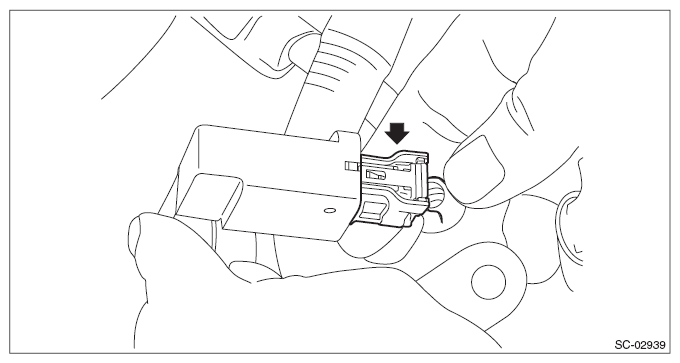

Fig 3: Locating Connectors From Battery Current And Temperature Sensor
Courtesy of SUBARU OF AMERICA, INC.
