Non-Turbo Model

Temporarily install the generator bracket to the engine and tighten the bolts in the numerical order.
Tightening torque: 36 N.m (3.7 kgf-m, 26.6 ft-lb)

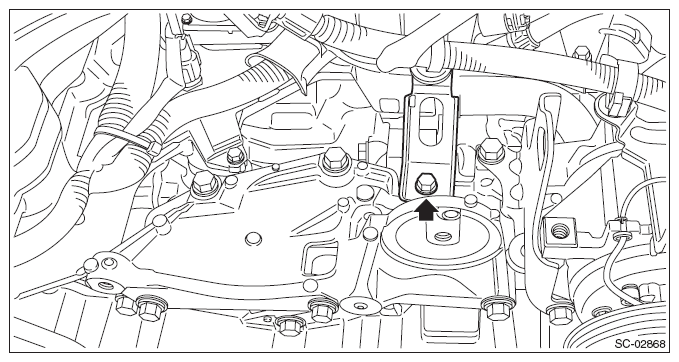

Fig 1: Locating Engine Bolts Of Generator Bracket
Courtesy of SUBARU OF AMERICA, INC.
Install the generator cord stay to the generator bracket.
Tightening torque: 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

Fig 2: Locating Bolt Of Generator Cord Stay From Generator Bracket
Courtesy of SUBARU OF AMERICA, INC.
Install the V-belt tensioner to the generator bracket. < Ref. to V-BELT TENSIONER ASSY , INSTALLATION, V-belt. >
Temporarily install the generator bracket to the generator and tighten the bolts in the numerical order.
Tightening torque: 25 N.m (2.5 kgf-m, 18.4 ft-lb)

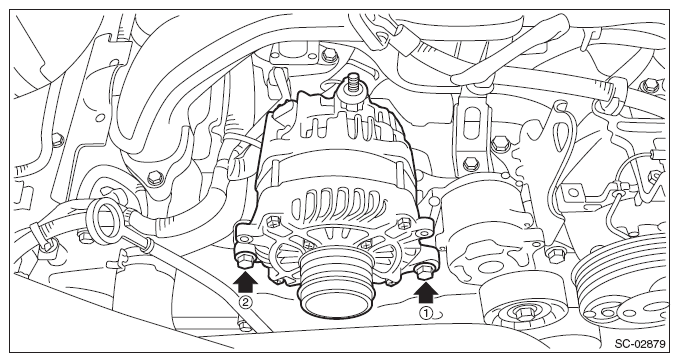

Fig 3: Locating Bolts Of Generator Bracket
Courtesy of SUBARU OF AMERICA, INC.
Connect the connector (A) and terminal (B) to the generator.
Tightening torque: 16 N.m (1.6 kgf-m, 11.8 ft-lb)

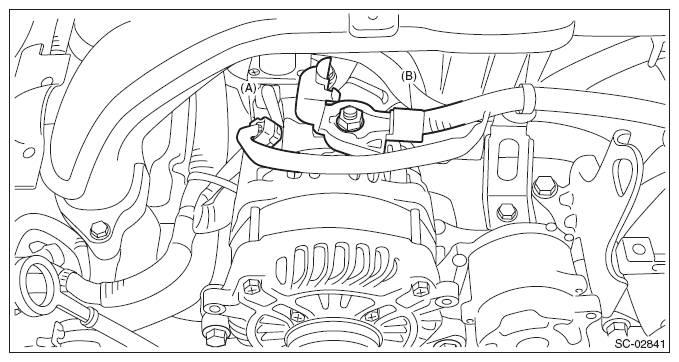

Fig 4: Identifying Generator Connector Terminal
Courtesy of SUBARU OF AMERICA, INC.
Install the V-belt cover bracket.
Tightening torque: 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

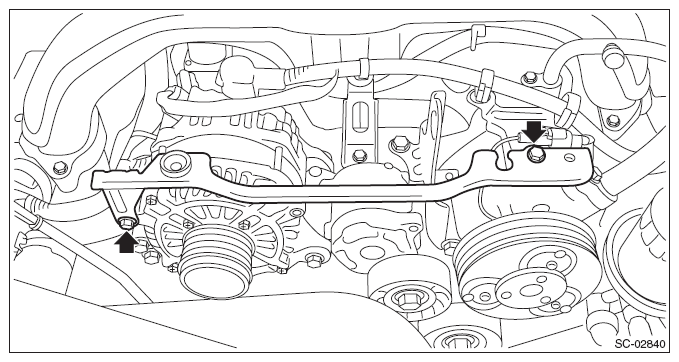

Fig 5: Locating V-Belt Cover Bracket Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the V-belts. < Ref. to V-BELT , INSTALLATION, V-belt. >
Connect the battery ground terminal.
Install the V-belt cover.
Tightening torque: 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

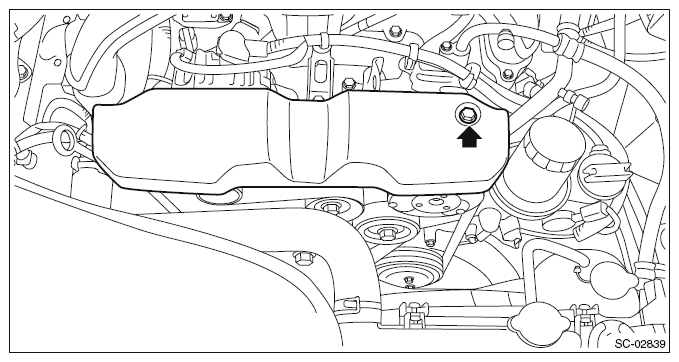

Fig 6: Locating V-Belt Cover Bolt
Courtesy of SUBARU OF AMERICA, INC.
