Transmission Control Device: Installation

Install the parking support.
Tightening torque:

25 N.m (2.5 kgf-m, 18.4 ft-lb)

Fig 1: Locating Parking Support Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the extension case. < Ref. to INSTALLATION , Extension Case. >
Install the manual valve.

Fig 2: Installing Manual Valve
Courtesy of SUBARU OF AMERICA, INC.
Install the shifter arm shaft and bolt.
NOTE: Do not damage the lip of oil seal press-fitted in the case.

Tightening torque:

7 N.m (0.7 kgf-m, 5.2 ft-lb)

Fig 3: Locating Shifter Arm Shaft Bolt
Courtesy of SUBARU OF AMERICA, INC.
Install the parking rod to the manual plate.
Insert the parking rod into the transmission case, and install the shift connecting rod of the manual valve to the manual plate.

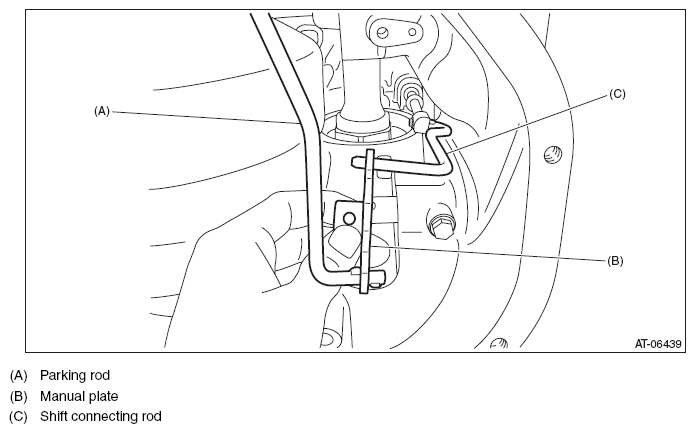

Fig 4: Installing Parking Rod To Manual Plate
Courtesy of SUBARU OF AMERICA, INC.
Install the manual plate to the shifter arm shaft.
Install the detent spring to the transmission case.
Tightening torque:

7 N.m (0.7 kgf-m, 5.2 ft-lb)

Fig 5: Locating Detent Spring Bolt
Courtesy of SUBARU OF AMERICA, INC.
Install the spring pin.
NOTE: Use new spring pin.

Fig 6: Locating Transmission Spring Pin
Courtesy of SUBARU OF AMERICA, INC.
Install the inhibitor switch. < Ref. to INSTALLATION , Inhibitor Switch. >
Adjust the inhibitor switch. < Ref. to ADJUSTMENT , Inhibitor Switch. >
Install the oil strainer and oil pan. < Ref. to INSTALLATION , Oil Pan and Strainer. >
Install the transmission assembly to the vehicle. < Ref. to INSTALLATION , Automatic Transmission Assembly. >
