Transmission Control Device: Removal

Remove the transmission assembly from the vehicle. < Ref. to REMOVAL , Automatic Transmission Assembly. >
Remove the inhibitor switch. < Ref. to REMOVAL , Inhibitor Switch. >
Remove the oil pan and oil strainer. < Ref. to REMOVAL , Oil Pan and Strainer. >
Shift the manual plate to "N" range, and remove the spring pin.
NOTE: Prevent the spring pin from dropping in the transmission using paper towel etc.

Fig 1: Locating Transmission Spring Pin
Courtesy of SUBARU OF AMERICA, INC.
Remove the detent spring.

Fig 2: Locating Detent Spring Bolt
Courtesy of SUBARU OF AMERICA, INC.
Remove the manual plate from the shifter arm shaft, and remove the shift connecting rod of the manual valve.

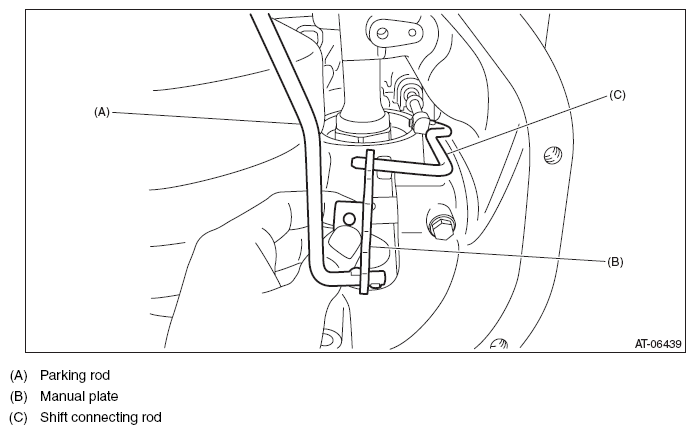

Fig 3: Removing Manual Plate From Shifter Arm Shaft
Courtesy of SUBARU OF AMERICA, INC.
Remove the manual plate and parking rod.
Remove the bolt, and remove the shifter arm shaft.
NOTE: Do not damage the lip of oil seal press-fitted in the case.

Fig 4: Locating Shifter Arm Shaft Bolt
Courtesy of SUBARU OF AMERICA, INC.
Remove the manual valve.

Fig 5: Removing Manual Valve
Courtesy of SUBARU OF AMERICA, INC.
Remove the extension case. < Ref. to REMOVAL , Extension Case. >
Remove the parking support.

Fig 6: Locating Parking Support Bolts
Courtesy of SUBARU OF AMERICA, INC.
