Side Retainer

1. Remove the O-ring.
   Fig 1: Identifying Drive Pinion Oil Seal And O-Ring

   Courtesy of SUBARU OF AMERICA, INC.
2. Remove the oil seal.
   Fig 2: Identifying Oil Seal

   Courtesy of SUBARU OF AMERICA, INC.
3. Remove the SPLIT PIN (ST), and then remove the claw.

   ST 398527700 PULLER ASSY

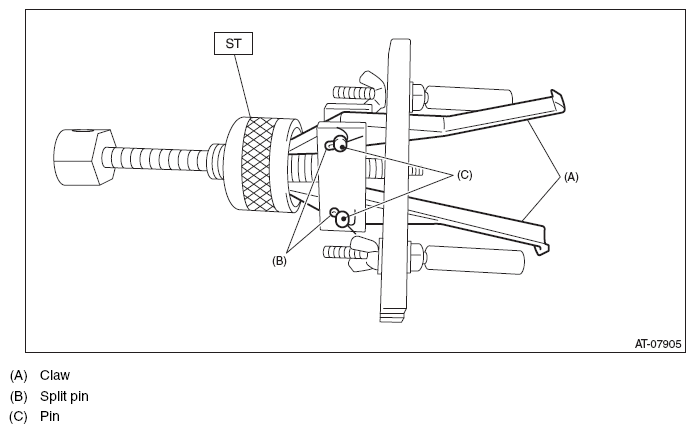

   Fig 3: Removing Claw And Split Pin (ST)

   Courtesy of SUBARU OF AMERICA, INC.
4. Attach two claws to the outer race, and set the ST to side retainer.

   ST 398527700 PULLER ASSY

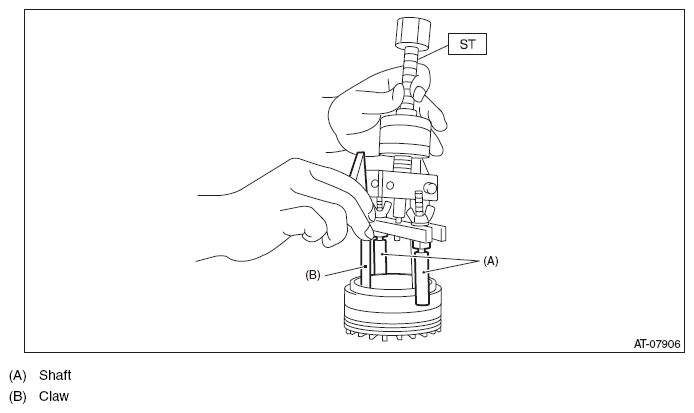

   Fig 4: Setting ST To Side Retainer

   Courtesy of SUBARU OF AMERICA, INC.
5. Restore the removed claws to original position, and install the pin and split pin.
6. Hold the shaft of ST to avoid removing from side retainer, and then remove the bearing outer race.

ST 398527700 PULLER ASSY

Fig 5: Removing Bearing Outer Race Using Tool

Courtesy of SUBARU OF AMERICA, INC.
