Transmission Control Module (TCM): Installation

Install the TCM to the bracket.
CAUTION: To avoid the damage to bracket and TCM, do not remove after installing TCM to bracket. If installed by mistake, the part must be replaced with a new part.

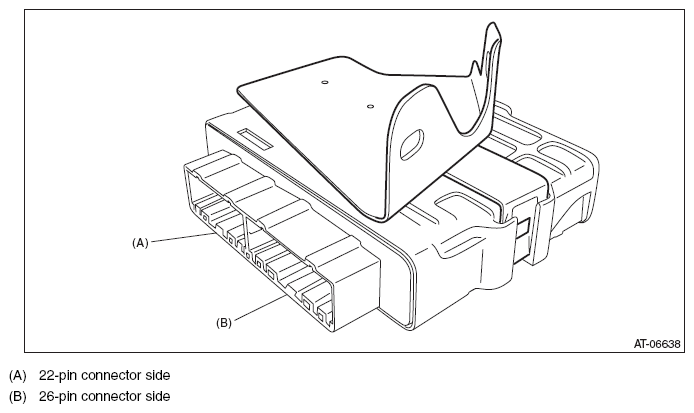

Fig 1: Identifying 22-Pin And 26-Pin Connector
Courtesy of SUBARU OF AMERICA, INC.
Install the TCM.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Fig 2: Identifying TCM And Bracket
Courtesy of SUBARU OF AMERICA, INC.
Install the harness connector to TCM.
Connect the battery ground terminal.
Perform the operation of AT learning mode. < Ref. to LEARNING CONTROL . >
