Home › Subaru › 2015 › Forester 2.0XT Touring › Repair and Diagnosis › Engine Performance › Engine Control Systems › Fuel Injection Fuel Systems (H4DOTC) › Fuel Pump Relay › Removal

Fuel Pump Relay: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the glove box. < Ref. to REMOVAL , Glove Box. >
  3. Remove the fuel pump relay.

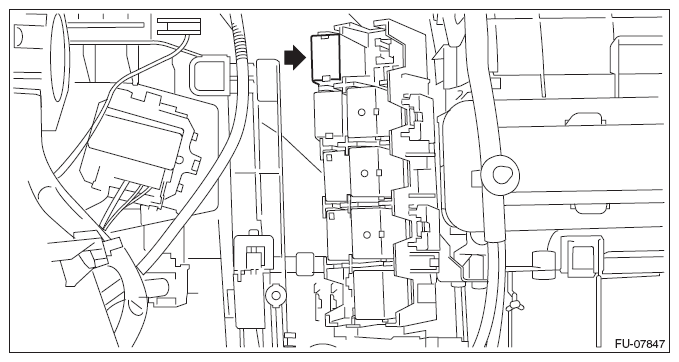

    Fig 1: Locating Fuel Pump Relay
    G09479803Courtesy of SUBARU OF AMERICA, INC.
