Transmission Control Module (TCM) I/O Signal: Waveform: Solenoid

Non-turbo model

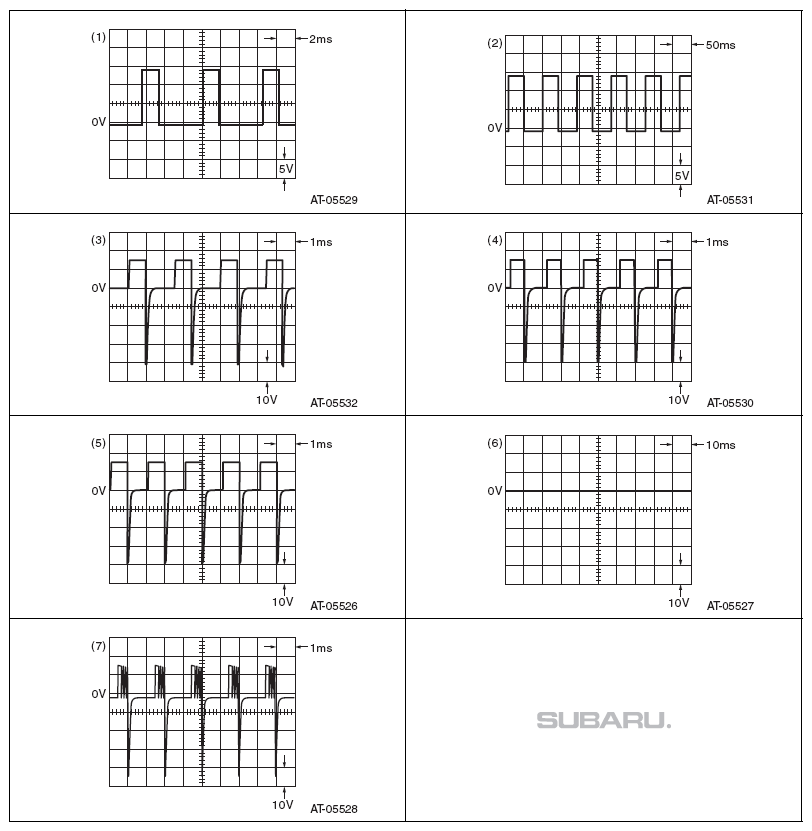

Fig 1: Identifying Transmission Control Module Solenoid Waveform - Non-Turbo Model (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

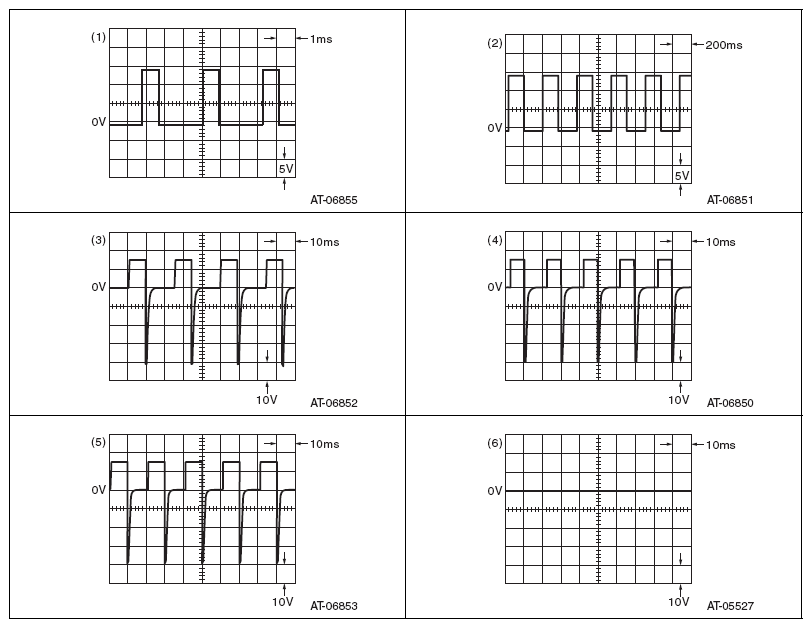

Fig 2: Identifying Transmission Control Module Solenoid Waveform - Non-Turbo Model (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Turbo model

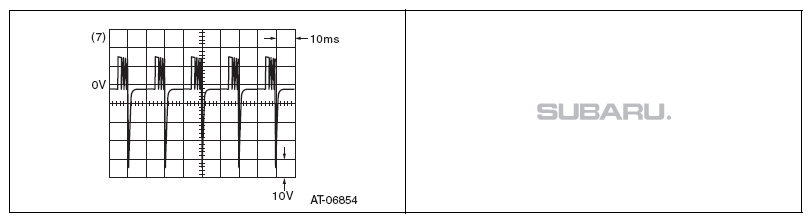

Fig 3: Identifying Transmission Control Module Solenoid Waveform (Turbo Model)
Courtesy of SUBARU OF AMERICA, INC.
