Connector End Views
›
Connector End Views
›
Audio Navigation Unit Connector End View
Audio Navigation Unit Connector End View

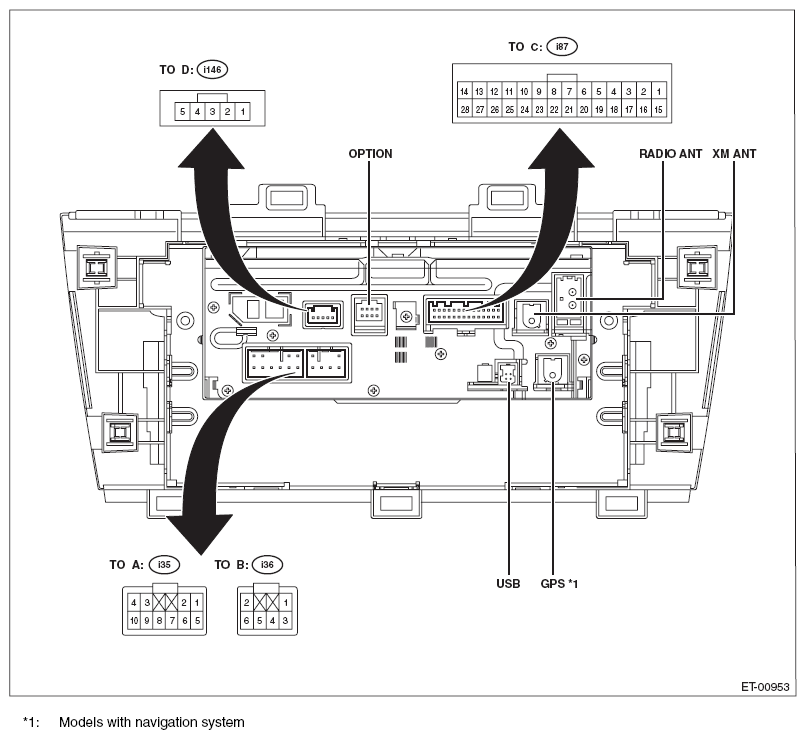

Fig 1: Audio Navigation Unit Connector End View
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
