Connector End Views
›
Roll Connector Unit Connector End View
Roll Connector Unit Connector End View

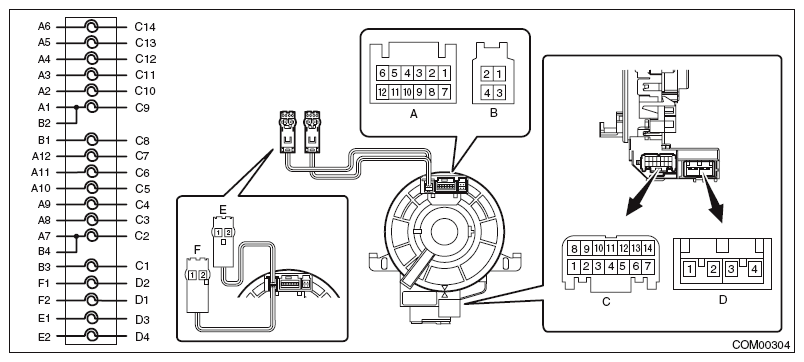

Fig 1: Roll Connector Unit Connector End View
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
