Front Regulator and Motor Assembly: Removal

Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. <Ref. to BATTERY , NOTE, Repair Contents.>
Remove the trim panel - front door. <Ref. to FRONT DOOR , REMOVAL, Door Trim.>
Remove the sealing cover - front door. <Ref. to REMOVAL , Front Sealing Cover.>
Remove the glass assembly - front door. <Ref. to REMOVAL , Front Door Glass.>
Remove the regulator and motor assembly - front.
1. Disconnect the motor - front connector.
2. Remove the bolts, and then remove the regulator and motor assembly - front.

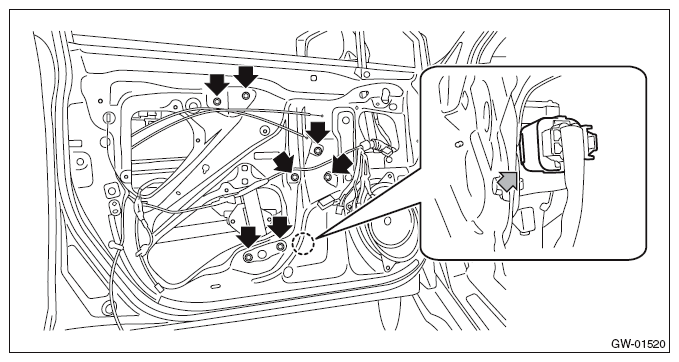

  Fig 1: Locating Bolts
  Courtesy of SUBARU OF AMERICA, INC.
