Engine Wiring Harness: Removal

Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Repair Contents.>
Remove the intake manifold assembly. <Ref. to REMOVAL , Intake Manifold Assembly.>
Disconnect each connector to remove the engine wiring harness.
- Structural diagram 1

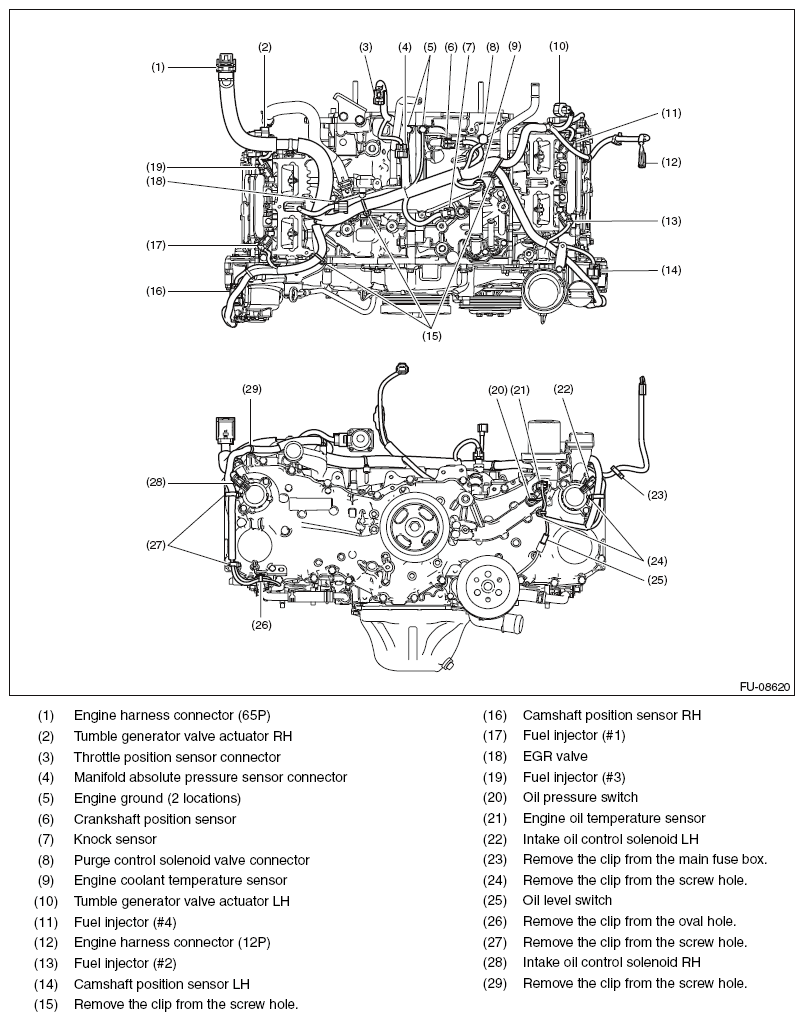

  Fig 1: Engine Wiring Harness Structural Diagram 1
  Courtesy of SUBARU OF AMERICA, INC.
- Structural diagram 2

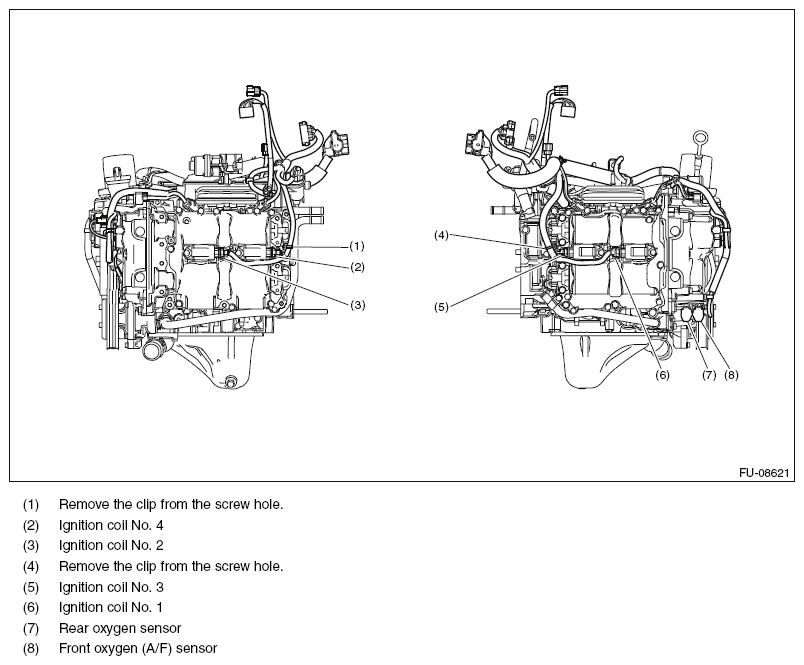

  Fig 2: Engine Wiring Harness Structural Diagram 2
  Courtesy of SUBARU OF AMERICA, INC.
