Continuously Variable Transaxle (CVT) (Diagnostics): Electrical Component Location: Location: Sensor

ENGINE TYPE FB

Fig 1: Locating Continuously Variable Transmission Sensor (Diagnostics) - Engine Type FB
Courtesy of SUBARU OF AMERICA, INC.
ENGINE TYPE EZ

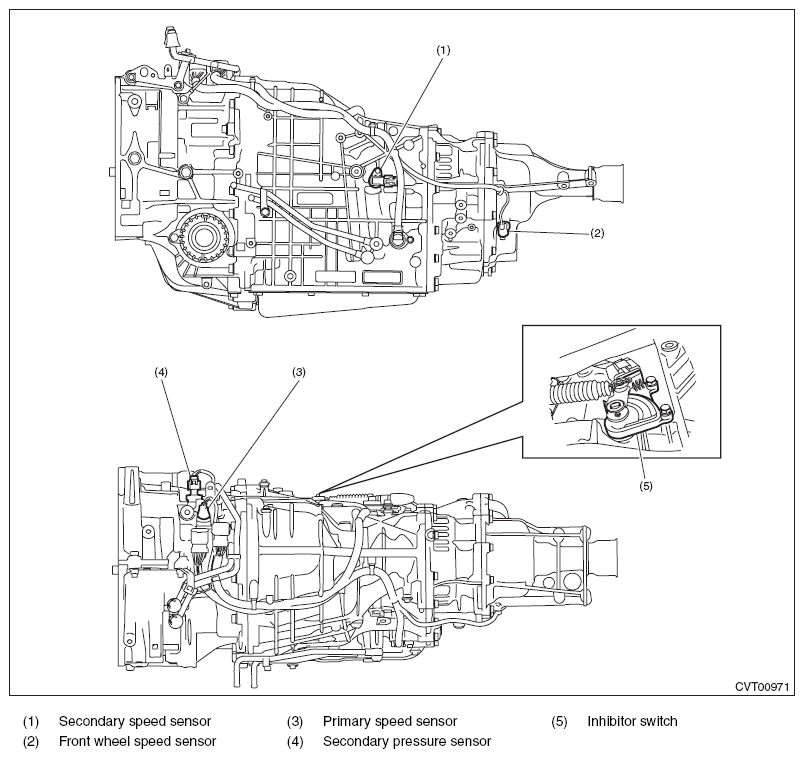

Fig 2: Locating Continuously Variable Transmission Sensor (Diagnostics) - Engine Type EZ
Courtesy of SUBARU OF AMERICA, INC.
