Keyless Buzzer: Removal

  1. Disconnect the ground cable from battery. <Ref. to BATTERY , NOTE, Note.>
    NOTE: For models other than STI model, disconnect the ground terminal from battery sensor.
  2. Remove the air cleaner case.
    • STI model: <Ref. to REMOVAL , Air Cleaner Case.>
    • Except for STI model: <Ref. to REMOVAL , Air Cleaner Case.>
  3. Lift up the vehicle.
  4. Remove the keyless buzzer.
    1. Disconnect the connector.
    2. Remove the clip and detach the keyless buzzer.

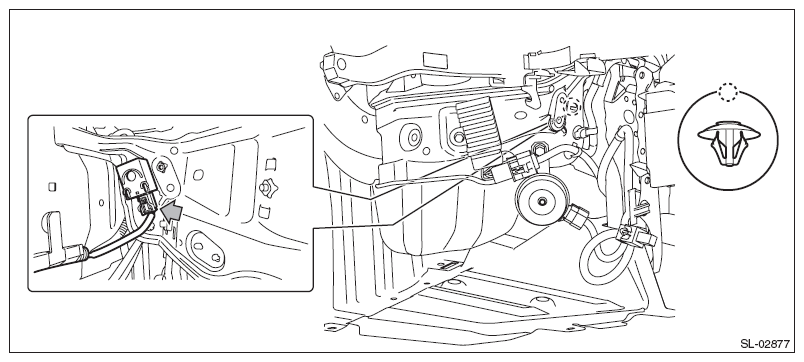

    Fig 1: Locating Keyless Buzzer Connector
    G10271062Courtesy of SUBARU OF AMERICA, INC.
