Relay and Fuse: Location

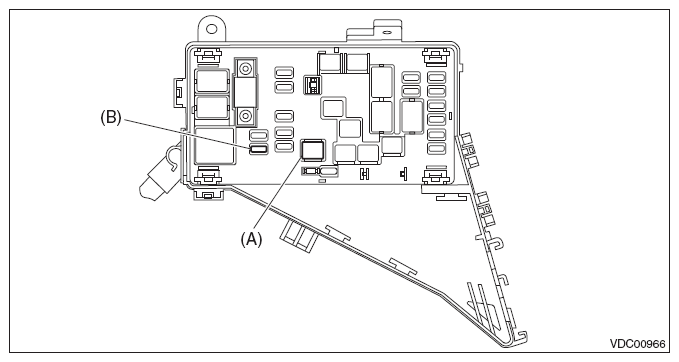

Fig 1: Relay And Fuse Location

Courtesy of SUBARU OF AMERICA, INC.

Main fuse box	Fuse 40A (VDC CM & H/U)	(A)
Main fuse box	Fuse 30A (VDC CM & H/U)	(B)

NOTE: For other related fuses, refer to the wiring diagram. <Ref. to POWER DISTRIBUTION , Power Supply Circuit.>
