Starting System & Charging System (Except STI): Generator: Removal

  1. Remove the collector cover. <Ref. to REMOVAL , Collector Cover.>
  2. Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Note.>
  3. Remove the brake booster vacuum pump. <Ref. to REMOVAL , Brake Vacuum Pump.>
  4. Remove the V-belts. <Ref. to V-BELT , REMOVAL, V-belt.>
  5. Remove the collector cover bracket.
    Fig 1: Locating Collector Cover Bracket Bolt
    G10267432Courtesy of SUBARU OF AMERICA, INC.
  6. Disconnect the connector (A) and terminal (B) from the generator.
    Fig 2: Identifying Generator Connector And Terminal
    G09476732Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the generator from the generator bracket.

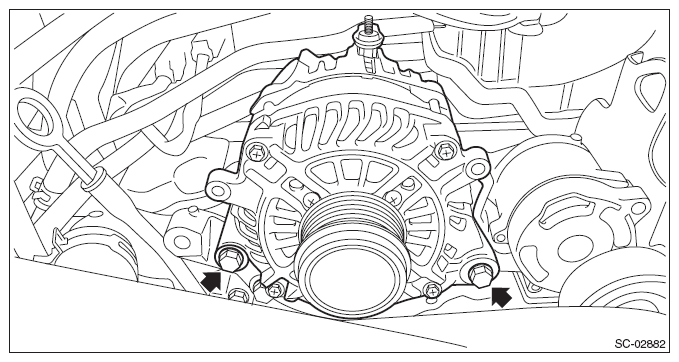

    Fig 3: Locating Generator Bracket Bolt
    G09476733Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the V-belt tensioner. <Ref. to V-BELT TENSIONER ASSEMBLY , REMOVAL, V-belt.>
  9. Remove the generator bracket from the engine.

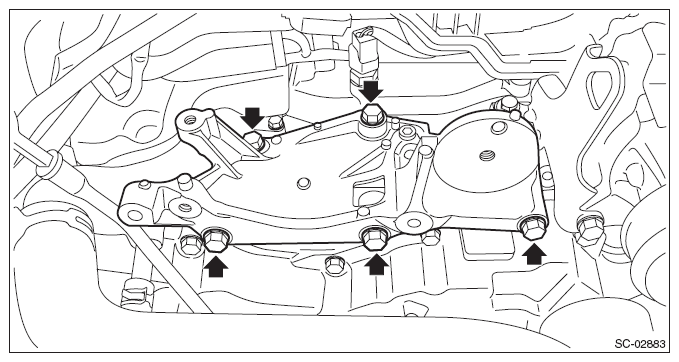

    Fig 4: Locating Engine Generator Bracket
    G09476734Courtesy of SUBARU OF AMERICA, INC.
