Check Roll Connector

  1. Remove the roll connector. <Ref. to REMOVAL , Roll Connector.>
  2. Measure the resistance between connector terminals.

    Preparation tool:

    Circuit tester

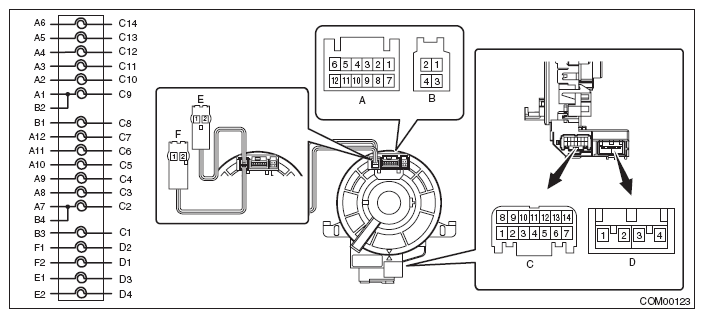

    Fig 1: Measuring Resistance Between Roll Connector Terminals
    G09489618Courtesy of SUBARU OF AMERICA, INC.
    RESISTANCE SPECIFICATION

    Terminal No. Inspection conditions Standard
    A1 - C9 Always Less than 1 Ω
  3. Replace the roll connector if the inspection result is not within the standard value.
