Chain Cover

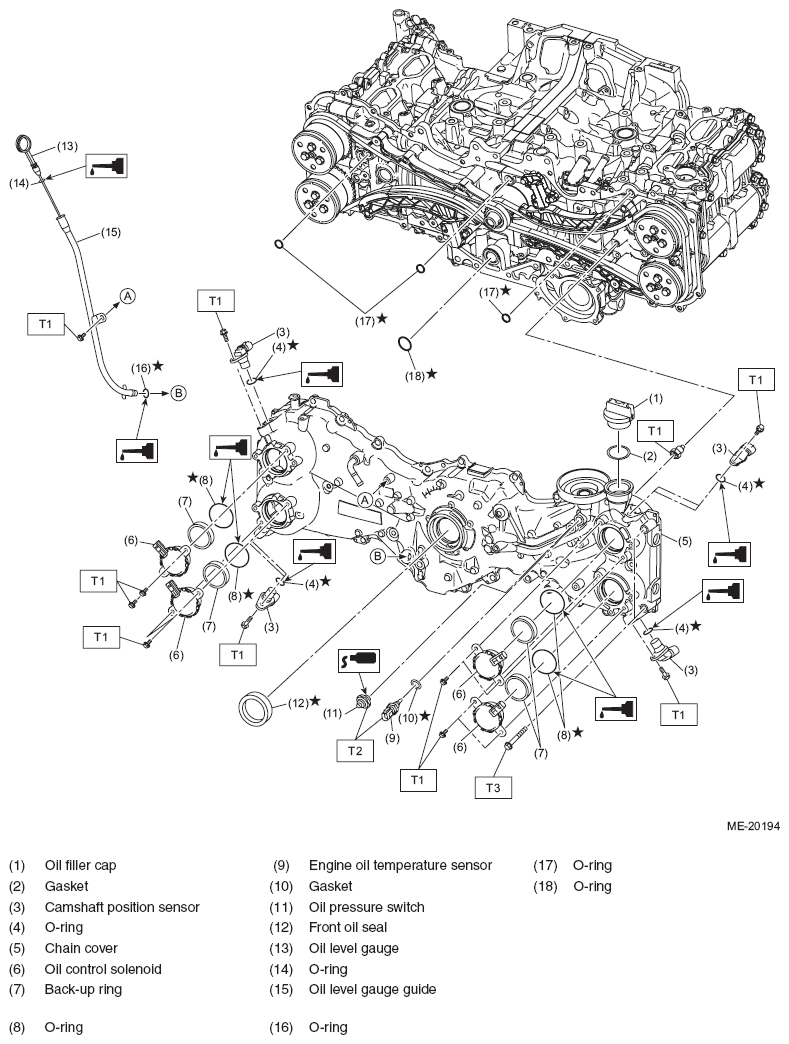

Fig 1: Exploded View Of Chain Cover

G10266608

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 18 (1.8, 13.3)

T3: <Ref. to INSTALLATION , Chain Cover.>
