Fuel Delivery and Evaporation Lines: Removal

Fig 1: Identifying Fuel Delivery And Evaporation Lines

Courtesy of SUBARU OF AMERICA, INC.

WARNING: Place "NO OPEN FLAMES" signs near the working area.

CAUTION: Be careful not to spill fuel.

1. Release the fuel pressure. <Ref. to RELEASING OF FUEL PRESSURE , PROCEDURE, Fuel.>
2. Open the fuel filler lid and remove the fuel filler cap.
   NOTE: This operation is required to release the inner pressure of the fuel tank.
3. Remove the floor mat. <Ref. to REMOVAL , Floor Mat.>

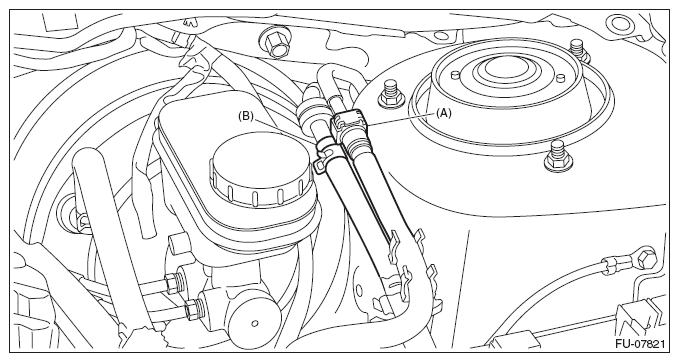

4. In the engine compartment, disconnect the fuel delivery tube (A) and evaporation hose (B).
   CAUTION:

   • Be careful not to spill fuel.
   • Catch the fuel from the tubes using a container or cloth.
   NOTE: Disconnect the quick connector as shown in the figure.
   Fig 2: Disconnecting Quick Connector

   Courtesy of SUBARU OF AMERICA, INC.
   Fig 3: Identifying Fuel Delivery Tube And Evaporation Hose

   Courtesy of SUBARU OF AMERICA, INC.
5. Remove the fuel tank. <Ref. to REMOVAL , Fuel Tank.>
6. Disconnect the quick connector, and remove the fuel delivery tube and jet pump tube from the fuel tank.
   CAUTION:

   • Be careful not to spill fuel.
   • Catch the fuel from the tubes using a container or cloth.
   NOTE: Disconnect the quick connector as shown in the figure.
   Fig 4: Disconnecting Quick Connector

   Courtesy of SUBARU OF AMERICA, INC.
7. Disconnect the quick connector and remove the purge pipe.
   NOTE: Disconnect the quick connector as shown in the figure.
   Fig 5: Disconnecting Quick Connector

   Courtesy of SUBARU OF AMERICA, INC.
   Fig 6: Locating Quick Connector And Purge Pipe

   Courtesy of SUBARU OF AMERICA, INC.
8. Remove the body integrated unit.
   1. Remove the knee airbag module. <Ref. to REMOVAL , Knee Airbag Module.>

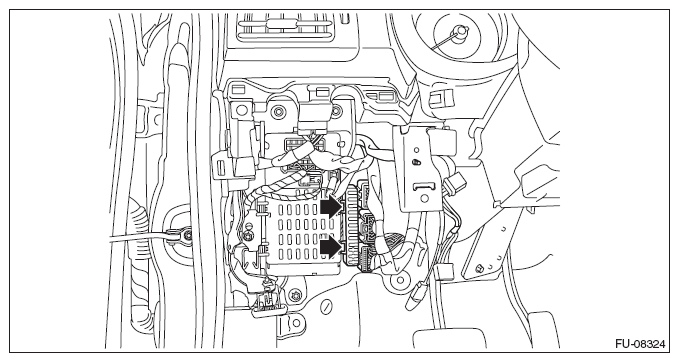

   2. Release the lock and remove the fuse holder from the relay & fuse box.
      Fig 7: Locating Lock And Fuse Holder

      Courtesy of SUBARU OF AMERICA, INC.
   3. Disconnect the connectors from the relay & fuse box.

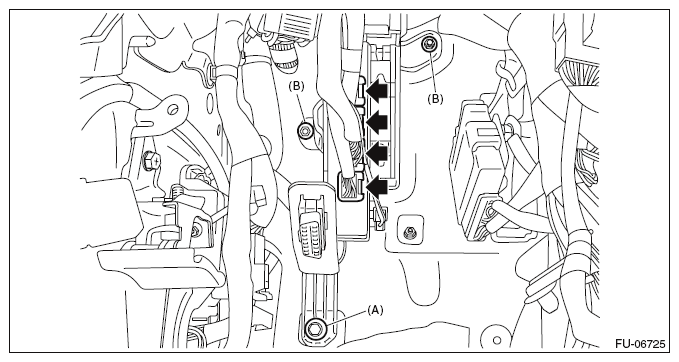

   4. Remove the bolts (A) and nuts (B), and remove the relay & fuse box.
      Fig 8: Identifying Relay & Fuse Box Bolts And Nuts

      Courtesy of SUBARU OF AMERICA, INC.

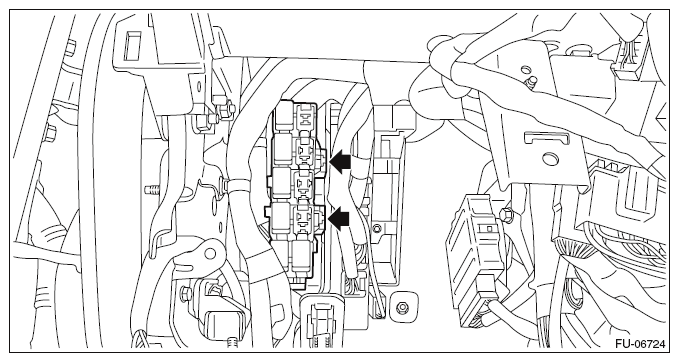

   5. Release the lock and remove the relay block.
      Fig 9: Locating Lock And Relay Block

      Courtesy of SUBARU OF AMERICA, INC.
   6. Disconnect the connector from body integrated unit.

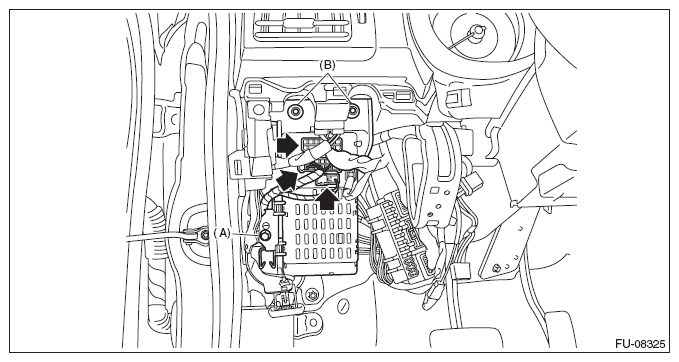

   7. Remove the bolt (A) and nut (B), and remove the body integrated unit along with the bracket.
      Fig 10: Identifying Body Integrated Unit Bolt And Nut

      Courtesy of SUBARU OF AMERICA, INC.
9. Remove the fuel pipe assembly from vehicle.
