Main Relay: Removal

  1. Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Note.>
  2. Remove the glove box. <Ref. to REMOVAL , Glove Box.>
  3. Remove the main relay.

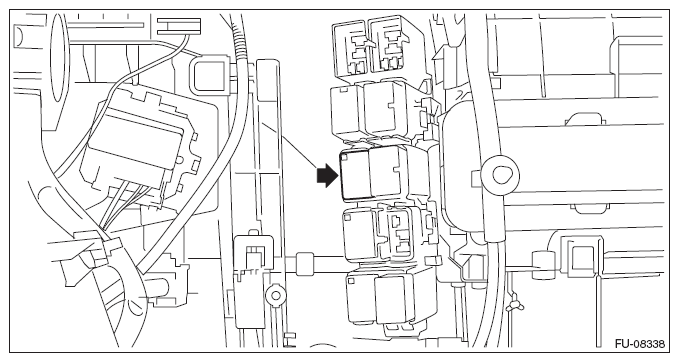

    Fig 1: Locating Main Relay
    G10266258Courtesy of SUBARU OF AMERICA, INC.
