Sunroof Assembly: Installation

WARNING: This page is about a different car, the 2015 Subaru Outback and 2015 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Be careful not to snag the harness.

Install the rail assembly - sunroof.
Tightening torque:

6 N.m (0.6 kgf-m, 4.4 ft-lb)
Install the curtain airbag module. <Ref. to INSTALLATION , Curtain Airbag Module.>
Connect the harness connector of the drain tube - sunroof and the motor assembly.
CAUTION: Insert the four drain tubes 15 mm (0.59 in) or more into the drain pipes (a).

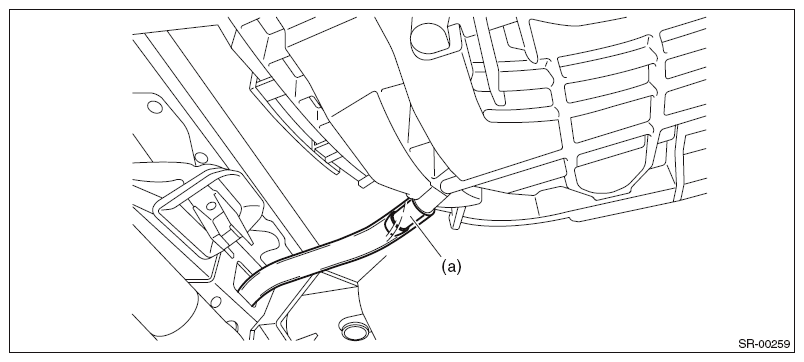

Fig 1: Identifying Drain Pipes
Courtesy of SUBARU OF AMERICA, INC.
Install the trim panel - roof assembly. <Ref. to INSTALLATION , Roof Trim.>
Install the lid assembly - sunroof.
Tightening torque:

4.5 N.m (0.5 kgf-m, 3.3 ft-lb)
