Jack-Up Point (When Using A Garage Jack)

WARNING: This page is about a different car, the 2016 Subaru Outback and 2016 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If jacking up the front side of the vehicle, make sure that the jack is attached at the center of the jack-up plate not at the sides.

2.5 L model

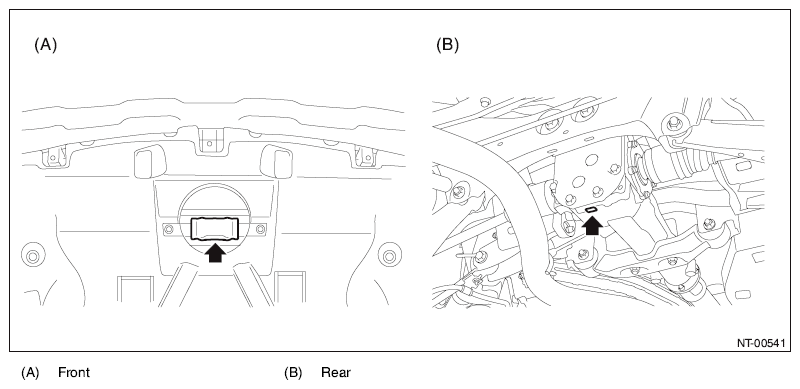

Fig 1: Locating Front And Rear Jack Up Point (2.5 L Model)

Courtesy of SUBARU OF AMERICA, INC.

3.6 L model

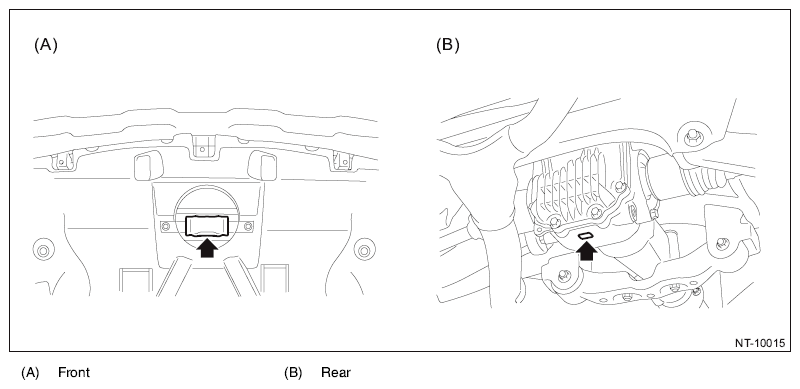

Fig 2: Locating Front And Rear Jack Up Point (3.6 L Model)

Courtesy of SUBARU OF AMERICA, INC.
