Front Accessory Power Supply Socket: Removal

WARNING: This page is about a different car, the 2016 Subaru Outback and 2016 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. < Ref. to BATTERY , NOTE, Repair Contents. >
  2. Remove the heater control assembly. < Ref. to REMOVAL , Control Panel. >
  3. Remove the cover assembly - front and the console box assembly. < Ref. to REMOVAL , Console Box. >
  4. Release the claws, and then remove the panel center LWR.
    Fig 1: Identifying Panel Center LWR Claws
    G10309172Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the screws and remove the pocket assembly - CTR.
    Fig 2: Locating CTR Pocket Assembly Screws
    G10309173Courtesy of SUBARU OF AMERICA, INC.
  6. While releasing the claw, press it in from the rear to remove the socket assembly.

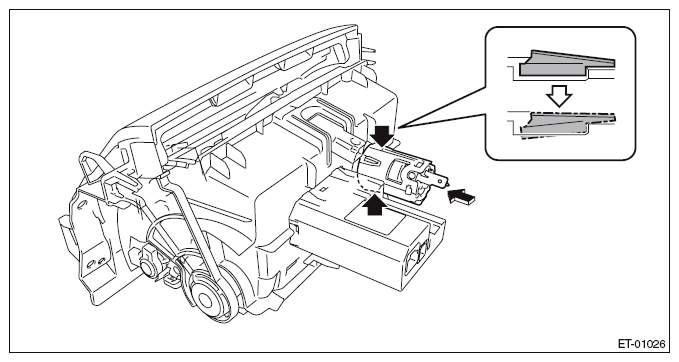

    Fig 3: Removing Socket Assembly
    G10272679Courtesy of SUBARU OF AMERICA, INC.
