Keyless Buzzer: Removal

WARNING: This page is about a different car, the 2016 Subaru Outback and 2016 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground terminal from battery sensor. < Ref. to BATTERY , NOTE, Repair Contents. >
  2. Remove the keyless buzzer.
    1. Remove the clips, and turn over the mud guard - front.
    2. Disconnect the connector.
    3. Remove the clip and detach the keyless buzzer.

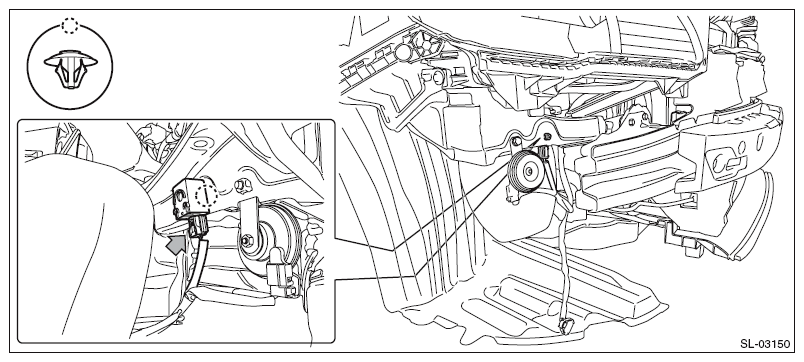

      Fig 1: Identifying Keyless Buzzer Connector And Clip
      G10273004Courtesy of SUBARU OF AMERICA, INC.
