Front Wiper

WARNING: This page is about a different car, the 2016 Subaru Outback and 2016 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

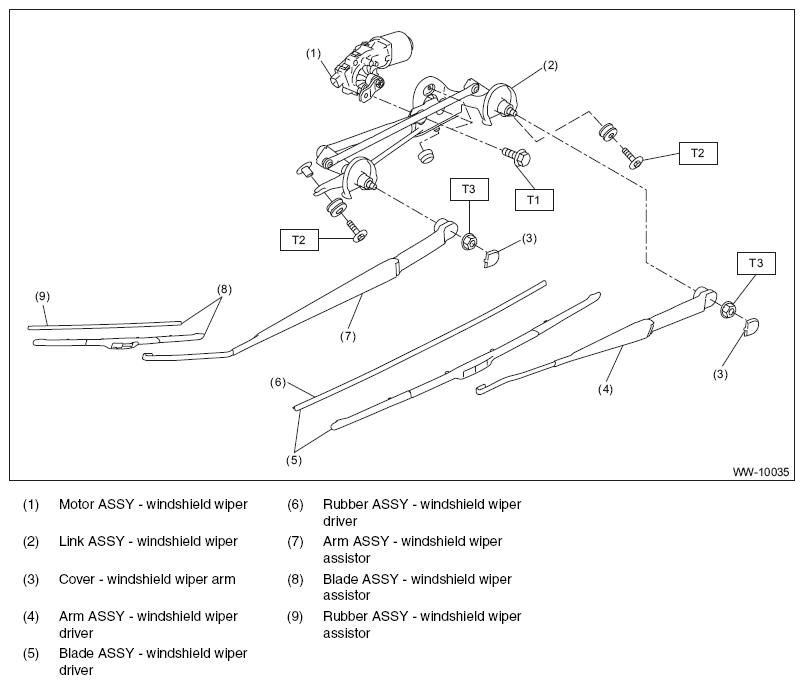

Fig 1: Identifying Front Wiper Related Components With Torque Specification
G10309046Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 5.4 (0.6, 4)

T2: 6 (0.6, 4.4)

T3: 22 (2.2, 16.2)
