Components With Torque Specifications

WARNING: This page is about a different car, the 2016 Subaru Outback and 2016 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

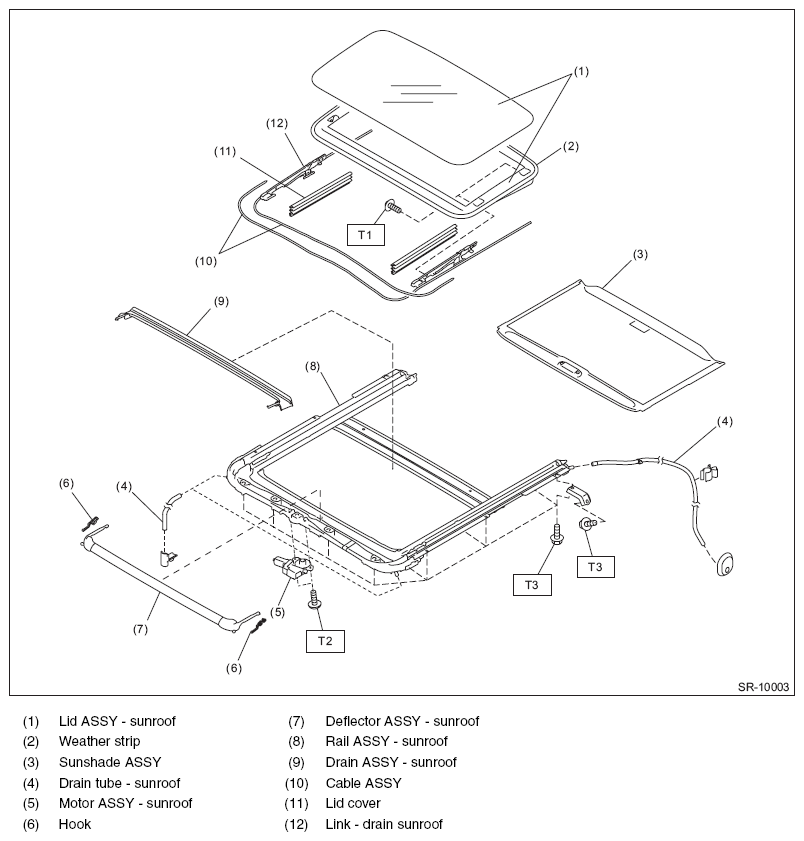

Fig 1: Exploded View Of Sunroof

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 4.5 (0.5, 3.3)

T2: 5.4 (0.6, 4.0)

T3: 6 (0.6, 4.4)
