Deflector Assembly

WARNING: This page is about a different car, the 2016 Subaru Outback and 2016 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

Open the lid assembly - sunroof and the sunshade assembly.
Remove the deflector assembly - sunroof.
1. Remove the spring from the rail assembly - sunroof.

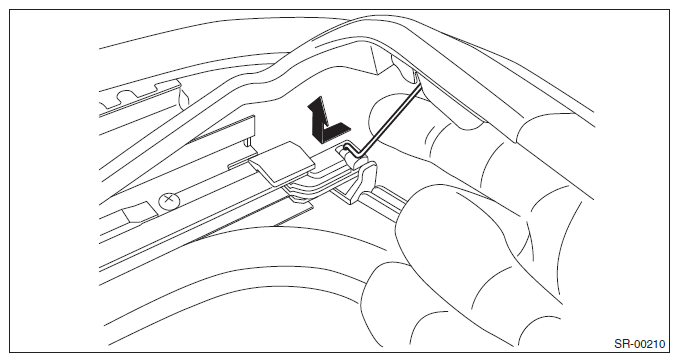

  Fig 1: Removing Spring From Rail Assembly - Sunroof
  Courtesy of SUBARU OF AMERICA, INC.
2. While pressing down the hook (a) of rail assembly - sunroof, slide it to the rail rear direction to remove.

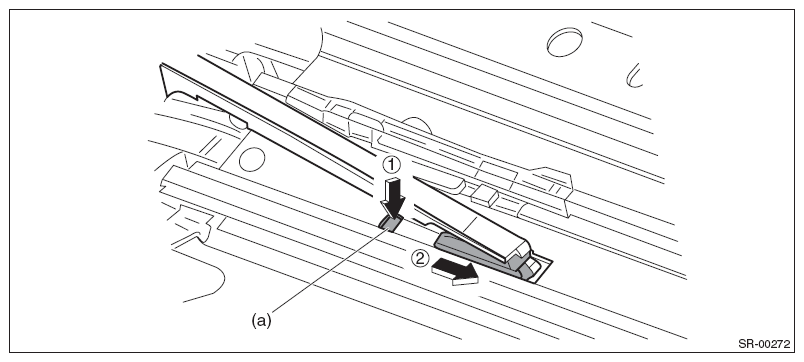

  Fig 2: Pressing Down Hook Of Rail Assembly - Sunroof
  Courtesy of SUBARU OF AMERICA, INC.
3. Remove the deflector assembly - sunroof from the hook of rail assembly - sunroof.

  Fig 3: Removing Deflector Assembly - Sunroof From Hook Of Rail Assembly - Sunroof
  Courtesy of SUBARU OF AMERICA, INC.
