Sunroof Assembly: Assembly

WARNING: This page is about a different car, the 2016 Subaru Outback and 2016 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

Insert the cable assembly and sunshade assembly into the rail assembly - sunroof.
Install the drain holder.
Using a flat tip screwdriver wrapped with protective tape, move the link - drain sunroof to the foremost position of the lid assembly - sunroof.

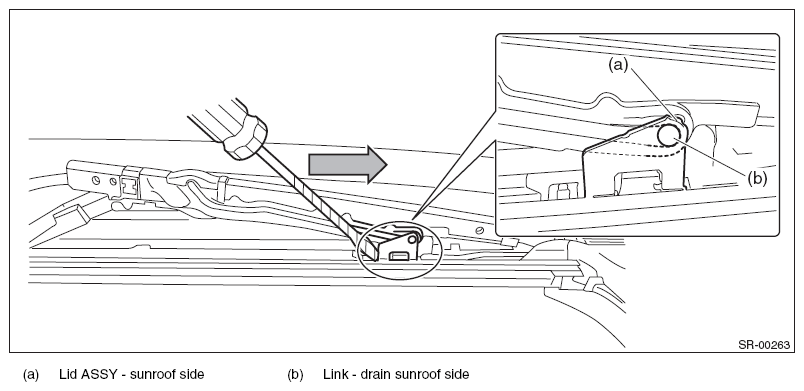

Fig 1: Moving Sunroof Drain Link
Courtesy of SUBARU OF AMERICA, INC.
Install the motor assembly - sunroof.
Tightening torque:

5.4 N.m (0.6 kgf-m, 4.0 ft-lb)
