Sunroof Switch: Inspection
WARNING: This page is about a different car, the 2016 Subaru Outback and 2016 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

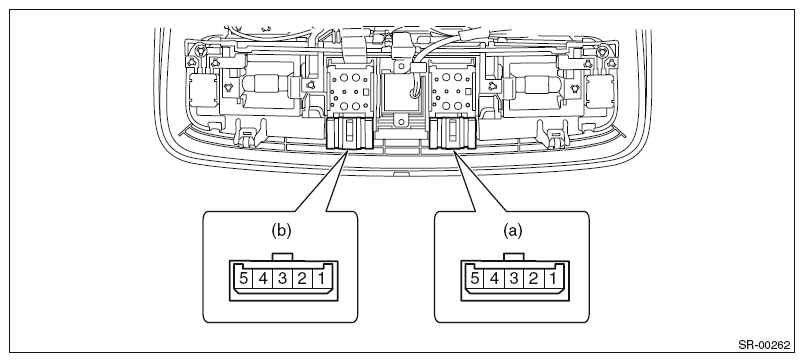

- Measure the resistance between connector terminals.
Preparation tool:
Circuit tester
Connector Terminal No. Inspection conditions Standard (a) 1 - 3 Open Less than 1 Ω 4 - 3 Close Less than 1 Ω (b) 1 - 3 Tilt down Less than 1 Ω 4 - 3 Tilt up Less than 1 Ω - Replace the sunroof switch if the inspection result is not within the standard value.
