Front Fog Light Assembly: Removal

WARNING: This page is about a different car, the 2015 Subaru Outback and 2015 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Repair Contents.>
Lift up the vehicle.
Remove the clips, and turn over the mud guard - front.

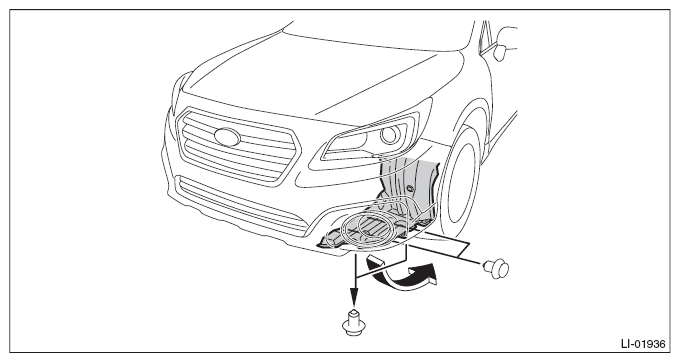

Fig 1: Turning Over Mud Guard - Front
Courtesy of SUBARU OF AMERICA, INC.
Remove the fog light assembly - front.
1. Disconnect the connector.
2. Remove the screws and clips, and remove the fog light assembly - front.
  - Sedan model

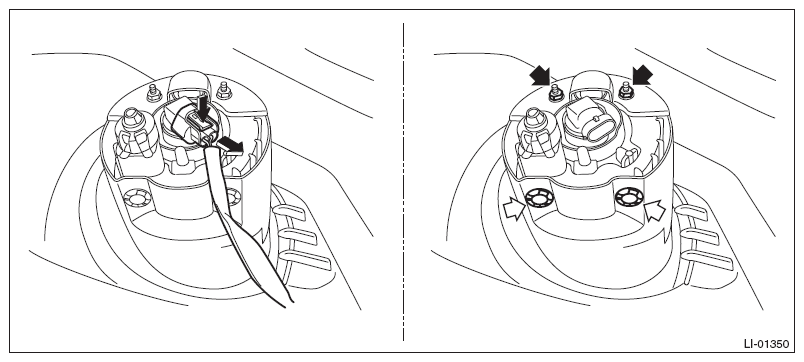

    Fig 2: Removing Front Fog Light Assembly (Sedan Model)
    Courtesy of SUBARU OF AMERICA, INC.
  - OUTBACK model

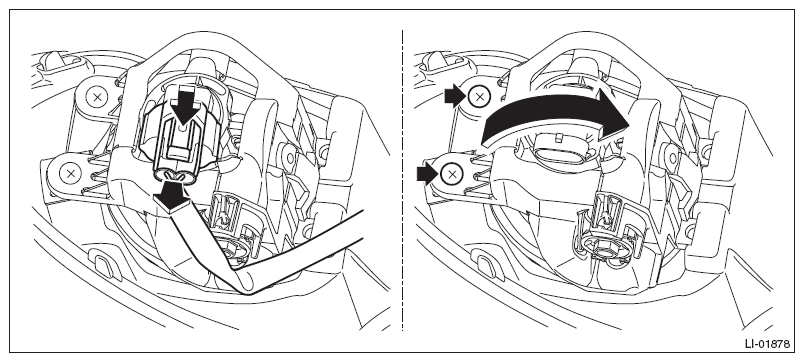

    Fig 3: Removing Front Fog Light Assembly (Outback Model)
    Courtesy of SUBARU OF AMERICA, INC.
