Hazard Switch: Removal
WARNING: This page is about a different car, the 2015 Subaru Outback and 2015 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the ground terminal from battery sensor. <Ref. to
BATTERY
, NOTE, Repair Contents.>
- Remove the center grille assembly. <Ref. to
REMOVAL
, Center Console.>

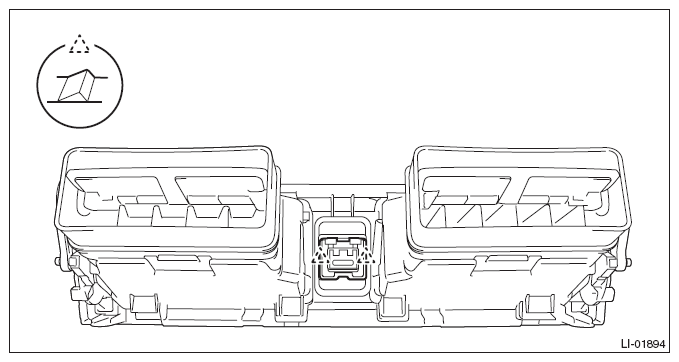

- Release the claws, and then remove the switch - hazard.
Courtesy of SUBARU OF AMERICA, INC.
