Trunk Room Light: Removal

WARNING: This page is about a different car, the 2015 Subaru Outback and 2015 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Do not remove the trunk room light if removing the bulb only.
  1. Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Repair Contents.>
  2. Remove the light assembly - trunk room.
    1. Release the claws.
    2. Disconnect the connector and remove the light assembly - trunk room.

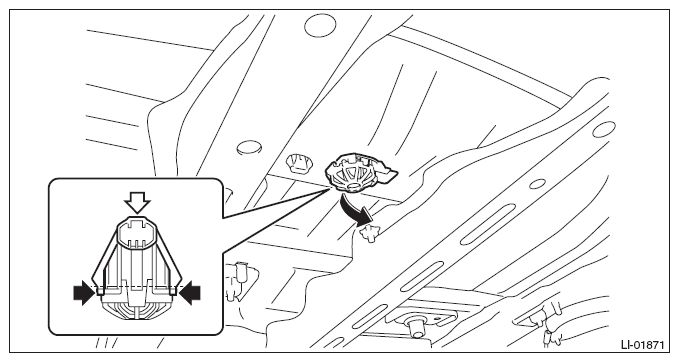

      Fig 1: Removing Trunk Room Light Assembly
      G10277265Courtesy of SUBARU OF AMERICA, INC.
  3. Release the claws to open the bulb cover, then remove the bulb.
    CAUTION: Use a dry clean cloth so that no grease or water adheres to the glass portion of the bulb.

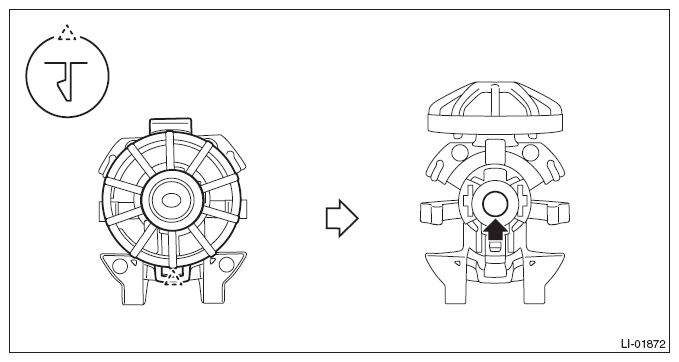

    Fig 2: Releasing Claws To Bulb Cover
    G10277266Courtesy of SUBARU OF AMERICA, INC.
