Front Wiper

WARNING: This page is about a different car, the 2015 Subaru Outback and 2015 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

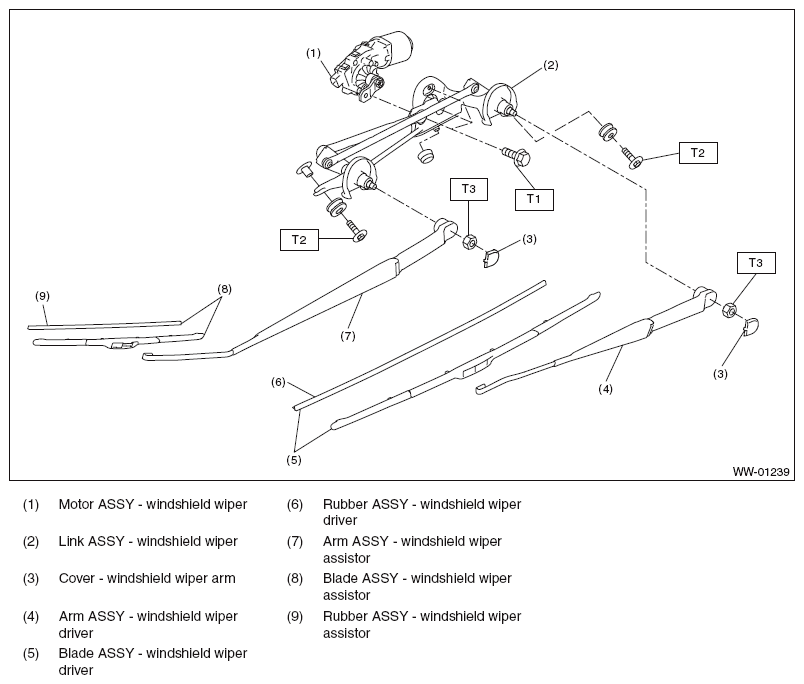

Fig 1: Exploded View Of Front Wiper

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 5.5 (0.6, 4.1)

T2: 6 (0.6, 4.4)

T3: 22 (2.2, 16.2)
