Wiper Blade: Assembly: Front

WARNING: This page is about a different car, the 2015 Subaru Outback and 2015 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

Insert the rubber assembly - windshield wiper onto the blade - windshield wiper so that the stopper is in the position shown in the figure.

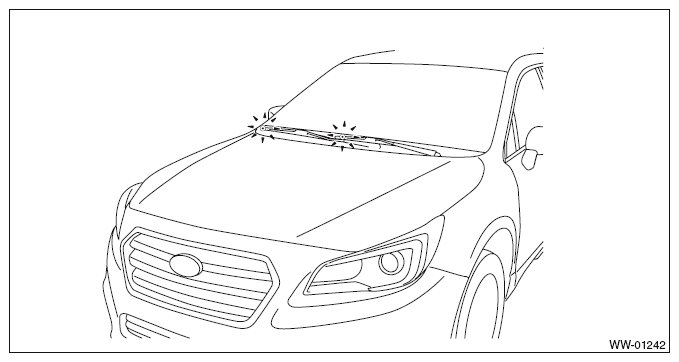

Fig 1: Inserting Windshield Wiper Rubber Assembly Onto Windshield Wiper Blade
Courtesy of SUBARU OF AMERICA, INC.
Make sure the rubber assembly - windshield wiper is securely fastened to the pull stopper (A).

Fig 2: Identifying Stopper
Courtesy of SUBARU OF AMERICA, INC.
