Section 1 (Engine Cooling System (STI)): Thermostat: Installation

WARNING: This page is about a different variant/trim than selected.

Install a gasket to thermostat.
NOTE: Use a new gasket.
Install the thermostat and thermostat cover.
NOTE: Install the parts with the jiggle pin facing upward.

Tightening torque:

12 N.m (1.2 kgf-m, 8.9 ft-lb)

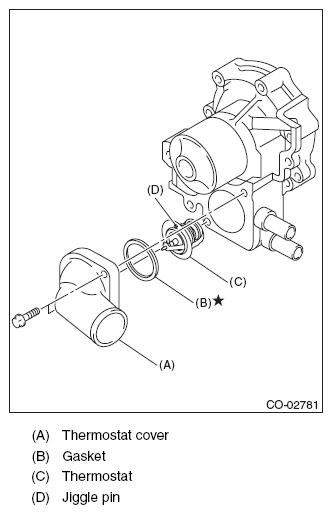

Fig 1: Identifying Thermostat, Thermostat Cover, Jiggle Pin And Gasket
Courtesy of SUBARU OF AMERICA, INC.
Connect the radiator outlet hose to thermostat cover.
Install the under cover. <Ref. to INSTALLATION , Front Under Cover.>
Lower the vehicle.
Fill engine coolant. <Ref. to FILLING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant.>
