Water Pump: Removal: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Remove the radiator. <Ref. to REMOVAL , Radiator.>
  2. Remove the V-belts. <Ref. to REMOVAL , V-belt.>
  3. Remove the crank pulley. <Ref. to REMOVAL , Crank Pulley.>
  4. Remove the timing belt cover. <Ref. to REMOVAL , Timing Belt Cover.>
  5. Remove the timing belt. <Ref. to REMOVAL , Timing Belt.>
  6. Remove the automatic belt tension adjuster (A).
  7. Remove the belt idler (B).
  8. Remove the belt idler No. 2 (C).

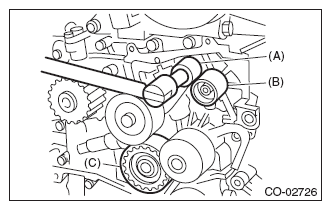

    Fig 1: Removing Automatic Belt Tension Adjuster
    G07910956Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the cam sprocket LH. <Ref. to REMOVAL , Cam Sprocket.>
  10. Remove the belt cover No. 2 LH.
    Fig 2: Locating Belt Cover No. 2 LH Bolts
    G08539489Courtesy of SUBARU OF AMERICA, INC.
  11. Remove the tensioner bracket.

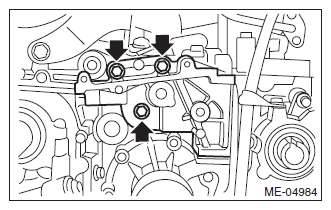

    Fig 3: Locating Tensioner Bracket Bolts
    G07909879Courtesy of SUBARU OF AMERICA, INC.
  12. Disconnect the hose from water pump.
  13. Remove the water pump.
Fig 4: Removing Water Pump
G04997829Courtesy of SUBARU OF AMERICA, INC.
