Clutch Disc and Cover: Installation

Insert the ST into the clutch disc and attach to the flywheel by inserting the ST end into pilot bearing.
NOTE: When installing the clutch disc, be careful to attach in the correct direction.

ST 499747100 CLUTCH DISC GUIDE

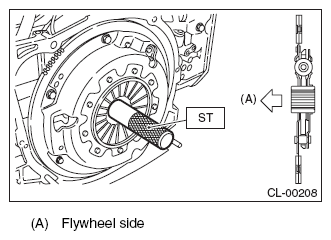

Fig 1: Inserting ST Into Clutch Disc
Courtesy of SUBARU OF AMERICA, INC.
Install the clutch cover to the flywheel and tighten the bolts to the specified torque.
NOTE:
- When installing a clutch cover to the flywheel, position the clutch cover so that the spacing between the unbalance marks (paint mark) on the flywheel and clutch cover is 120° or more apart. (The unbalance mark indicates the direction of residual unbalance.)
- Temporarily tighten the bolts by hand. Each bolt should be tightened to the specified torque in a crisscross order.
Tightening torque:

16 N.m (1.6 kgf-m, 11.8 ft-lb)
- STI model

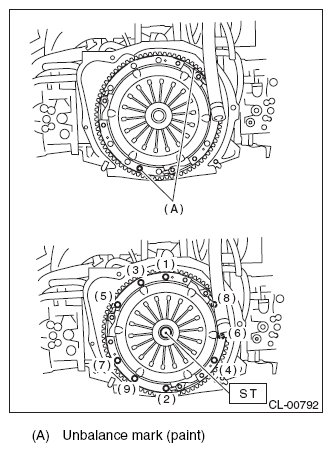

  Fig 2: Identifying Flywheel Bolts - STI Model
  Courtesy of SUBARU OF AMERICA, INC.
- Except for STI model

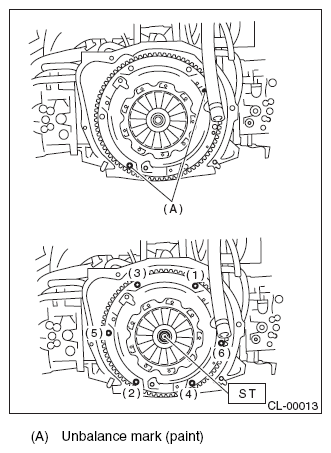

  Fig 3: Identifying Flywheel Bolts - Except For STI Model
  Courtesy of SUBARU OF AMERICA, INC.
Remove the ST.
ST 499747100 CLUTCH DISC GUIDE
Install the transmission assembly. <Ref. to INSTALLATION , Manual Transmission Assembly.> <Ref. to INSTALLATION , Manual Transmission Assembly.>
