Components With Torque Specifications

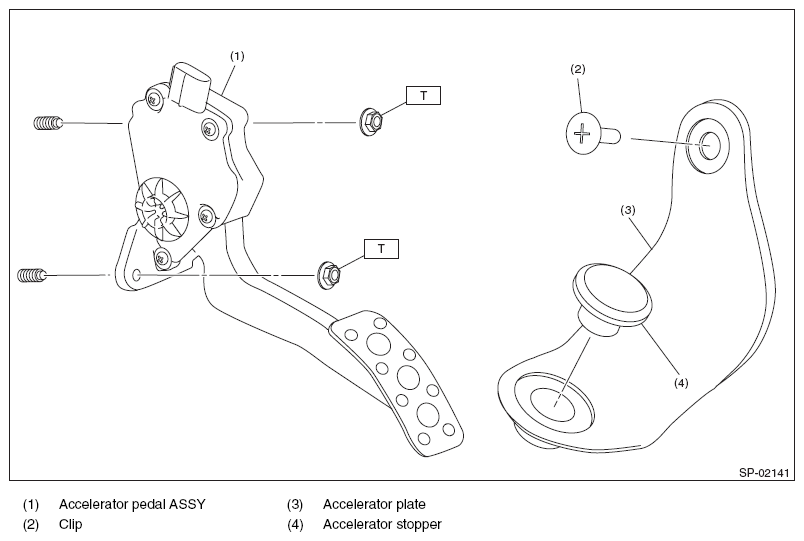

Fig 1: Exploded View Of Accelerator Pedal With Torque Specification

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)
