Transmission Control Module (TCM): Removal

Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Note.>
Move the lock lever in the arrow direction while pressing the lock button, and disconnect the connector.

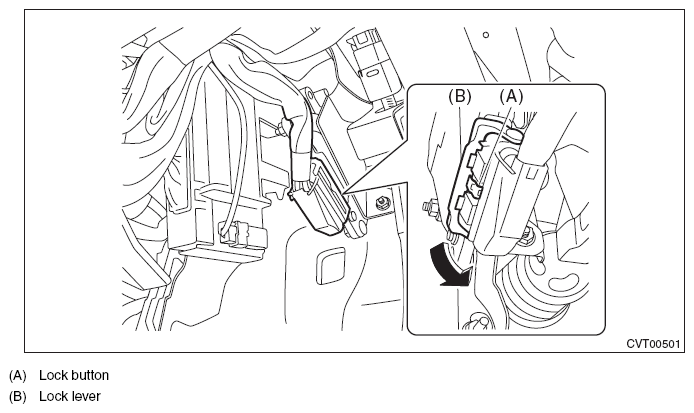

Fig 1: Pressing Lock Button
Courtesy of SUBARU OF AMERICA, INC.
Remove the TCM.

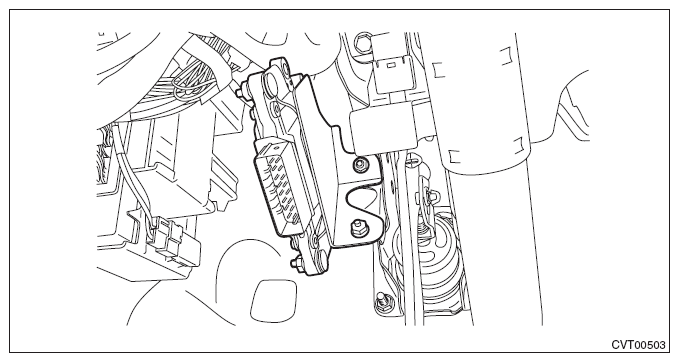

Fig 2: Identifying TCM
Courtesy of SUBARU OF AMERICA, INC.
Remove the TCM from the bracket.
- Type A

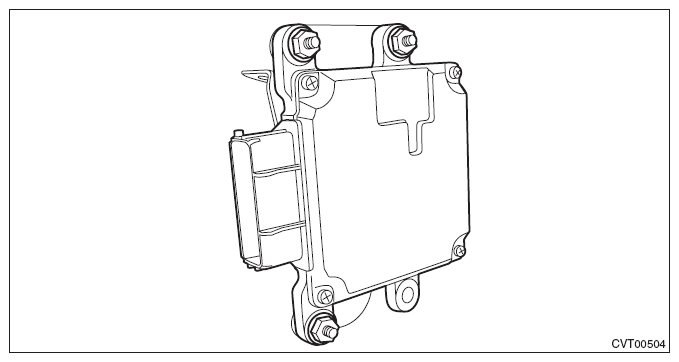

  Fig 3: Identifying Bracket TCM (Type A)
  Courtesy of SUBARU OF AMERICA, INC.
- Type B

  Fig 4: Identifying Bracket TCM (Type B)
  Courtesy of SUBARU OF AMERICA, INC.
