Floor Under Protector

Type A

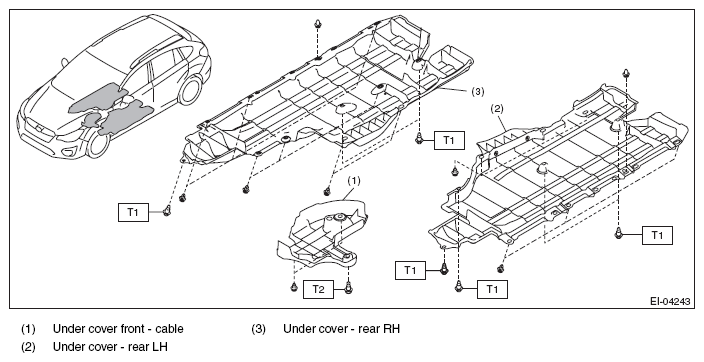

Fig 1: Identifying Floor Under Protector Components (Type A)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.76, 5.5)
Type B

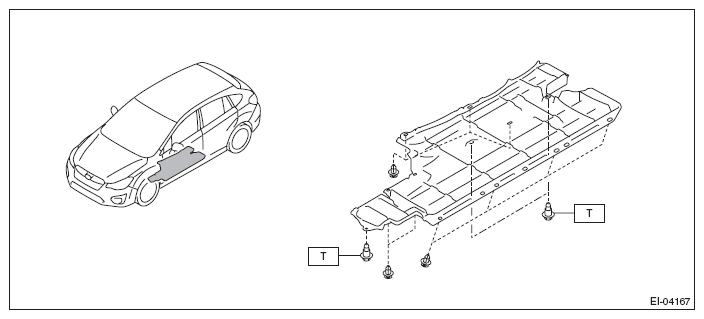

Fig 2: Identifying Floor Under Protector Components (Type B)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.76, 5.5)
Type C

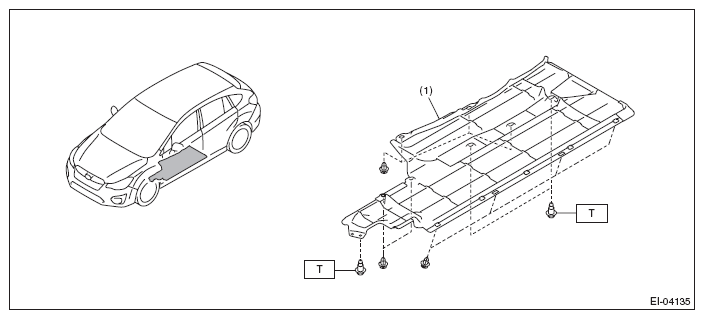

Fig 3: Identifying Floor Under Protector Components (Type C)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

7.5 (0.76, 5.5)

T2: 18 (1.84, 13.3)
