Front Bumper

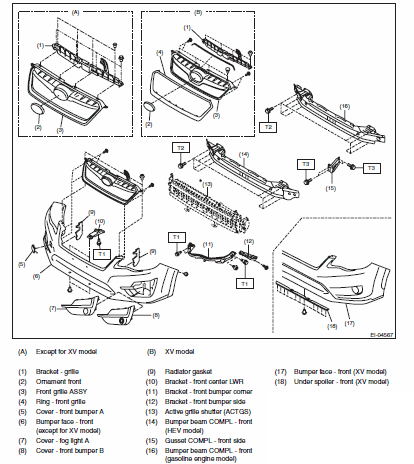

Fig 1: Identifying Front Bumper Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.76, 5.5)

T2: 32 (3.26, 23.6)

T3: 65 (6.63, 47.9)

*: For exploded view of the active grille shutter (ACTGS), refer to "ACTIVE GRILLE SHUTTER" of "HYBRID ELECTRIC VEHICLE". < Ref. to HYBRID POWERTRAIN CONTROL MODULE , COMPONENT, General Description.>
