Inner Trim

4 door model

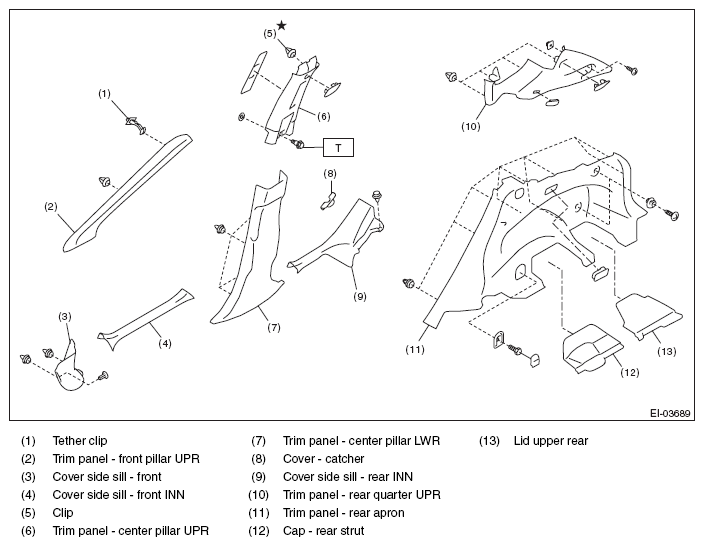

Fig 1: Identifying Inner Trim Components - 4 Door Model (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.76, 5.5)

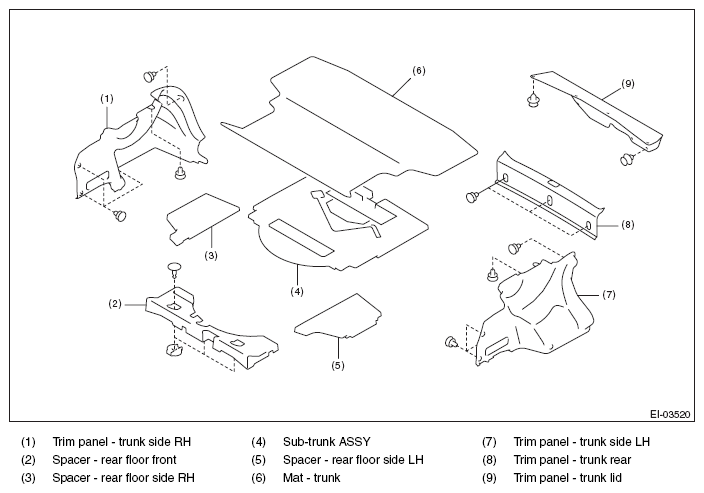

Fig 2: Identifying Inner Trim Components - 4 Door Model (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
5 door model (gasoline engine model)

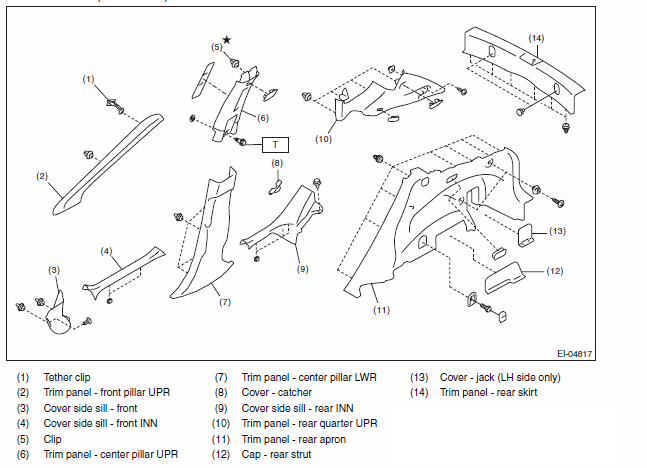

Fig 3: Identifying Inner Trim Components (Gasoline Engine Model; 1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.76, 5.5)

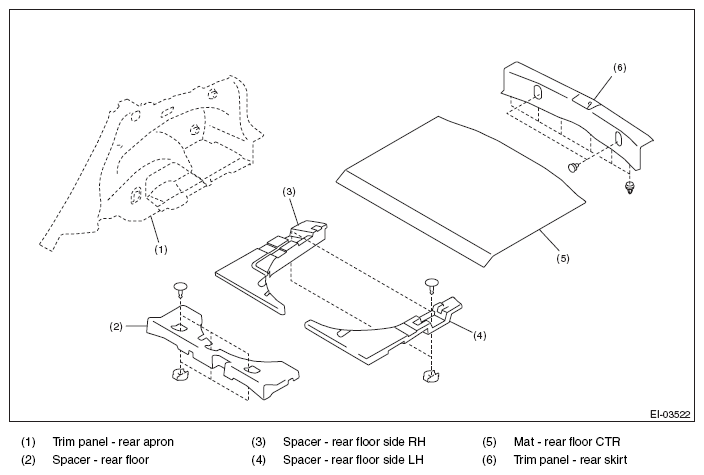

Fig 4: Identifying Inner Trim Components (Gasoline Engine Model; 2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
5 door model (HEV model)

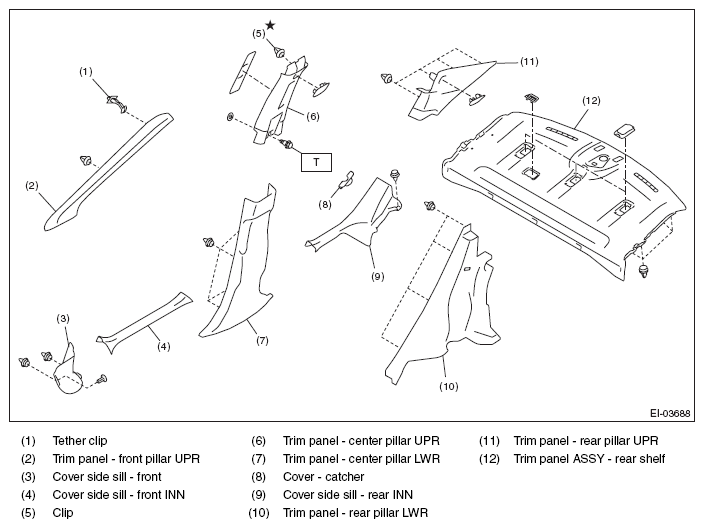

Fig 5: Identifying Inner Trim Components (HEV Model; 1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.76, 5.5

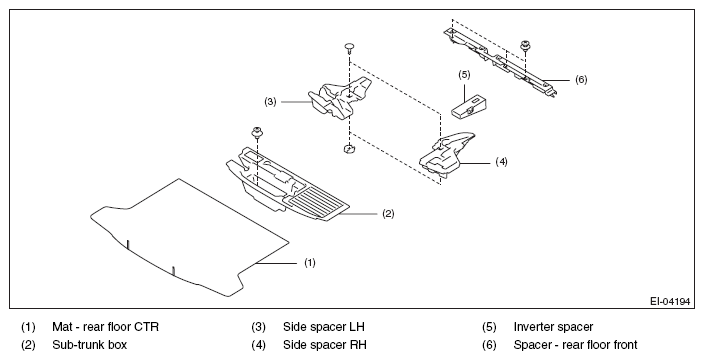

Fig 6: Identifying Inner Trim Components (HEV Model; 2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
