Rear Door Glass

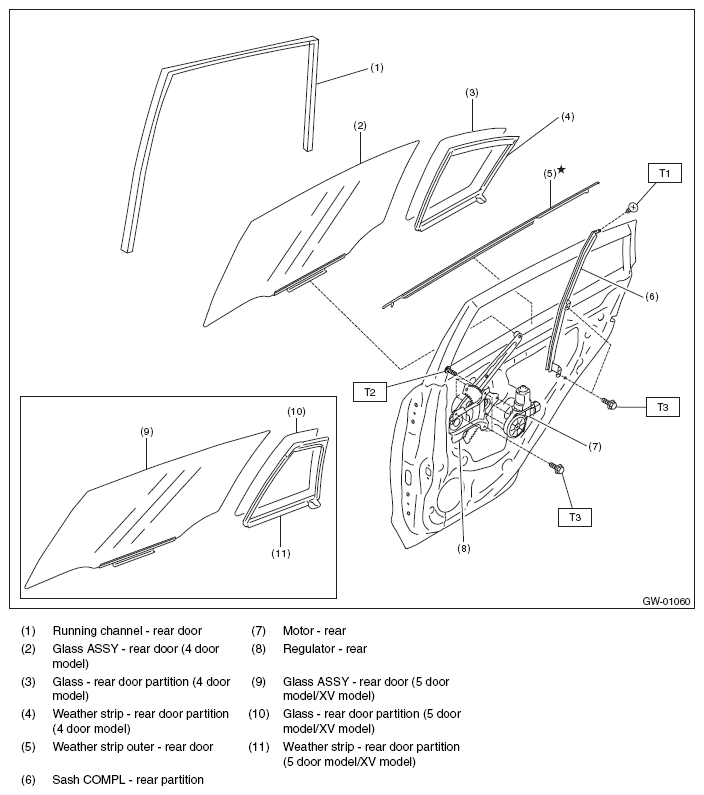

Fig 1: Identifying Rear Door Glass Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 2.2 (0.22, 1.6)

T2: 5.9 (0.6, 4.4)

T3: 7.5 (0.76, 5.5)
