Rear Regulator and Motor Assembly: Removal

  1. Remove the glass assembly - rear door. < Ref. to REMOVAL , Rear Door Glass.>
  2. Remove the rear regulator and motor assembly.
    1. Disconnect the motor - rear connector.
      Fig 1: Removing Rear Connector Motor
      G08315168Courtesy of SUBARU OF AMERICA, INC.
    2. Remove the bolts, and then remove the rear regulator and motor assembly.

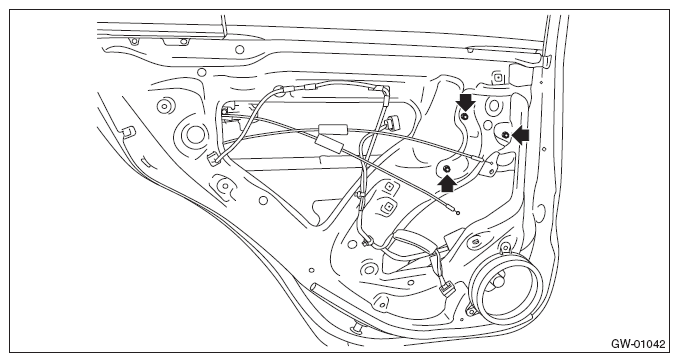

      Fig 2: Locating Rear Regulator And Motor Assembly Mounting Bolts
      G08315169Courtesy of SUBARU OF AMERICA, INC.
