Remote Control Mirror Switch
›
Removal
Remote Control Mirror Switch: Removal
Remove the panel - power window main switch. < Ref. to
MAIN SWITCH
, REMOVAL, Power Window Control Switch.>
Release the claws, and then remove the switch - door mirror.

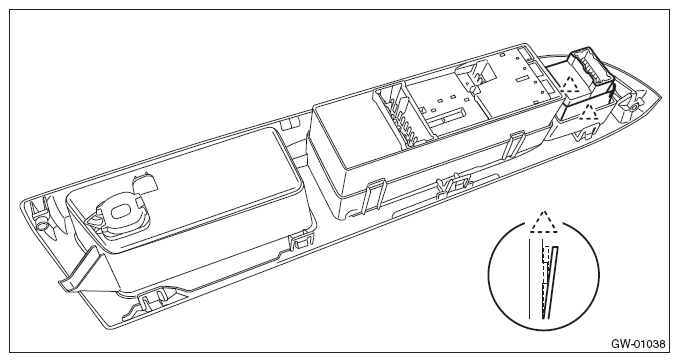

Fig 1: Identifying Door Mirror Switch Claws
Courtesy of SUBARU OF AMERICA, INC.
