Front Stabilizer: Installation

Before installation, inspect the following items and replace any faulty part with a new one.
- Check the bushing - stabilizer for abnormal cracks, fatigue or damage.
- Check the stabilizer link assembly for damage.
Install each part in the reverse order of removal.
CAUTION:
- Install the clamp - stabilizer bushing with the arrow mark facing the front of the vehicle.

  Fig 1: Identifying Stabilizer Bushing Clamp Installation Dimension
  Courtesy of SUBARU OF AMERICA, INC.

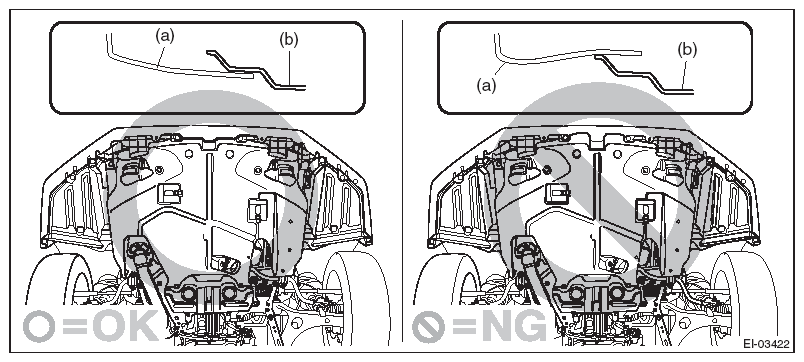

- Install the under cover so that the under cover front end (b) comes inside of the bumper face - front (a).
Fig 2: Identifying Under Cover Installation Proper And Improper Position
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

Refer to "COMPONENT" of "General Description". < Ref. to COMPONENT , General Description.>
Install the front wheels.
Tightening torque:

Except for C4 model: 120 N.m (12.24 kgf-m, 88.5 ft-lb)

C4 model: 100 N.m (10.20 kgf-m, 73.8 ft-lb)
