Operating Cylinder: Removal

Remove the clip (A) from the air intake boot.
Loosen the clamp (B) connecting the air intake boot and air cleaner case (rear).
Loosen the clamp (C) which connects the air intake boot and throttle body.

Fig 1: Identifying Air Intake Boot Clamp
Courtesy of SUBARU OF AMERICA, INC.
Remove the air intake boot from the throttle body, and move it to the left side wheel apron.

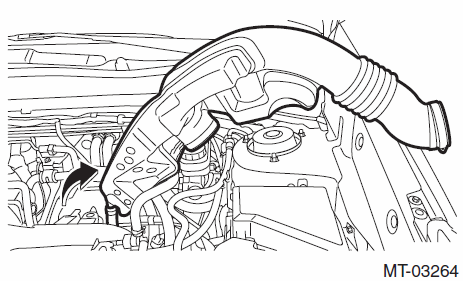

Fig 2: Identifying Air Intake Boot
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the clutch hose from the operating cylinder.
CAUTION: Cover the hose joint to prevent the clutch fluid from flowing out.

Fig 3: Identifying Clutch Hose And Operating Cylinder
Courtesy of SUBARU OF AMERICA, INC.
Remove the operating cylinder from the transmission.

Fig 4: Identifying Operating Cylinder On Transmission - Non-Turbo Model
Courtesy of SUBARU OF AMERICA, INC.
