Exploded View
Exploded View

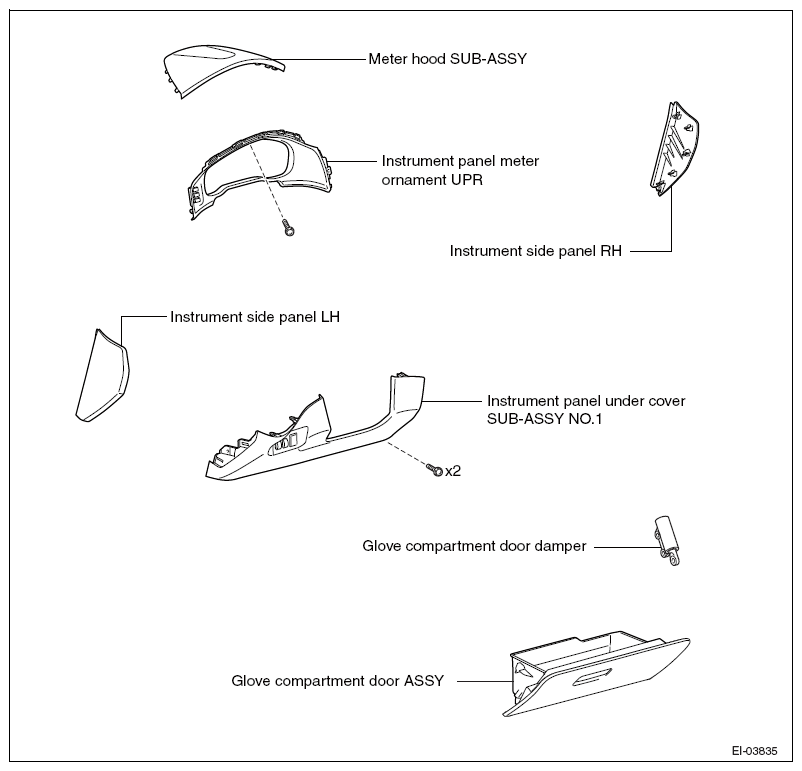

Fig 1: Exploded View Of Instrument Panel Lower (1 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

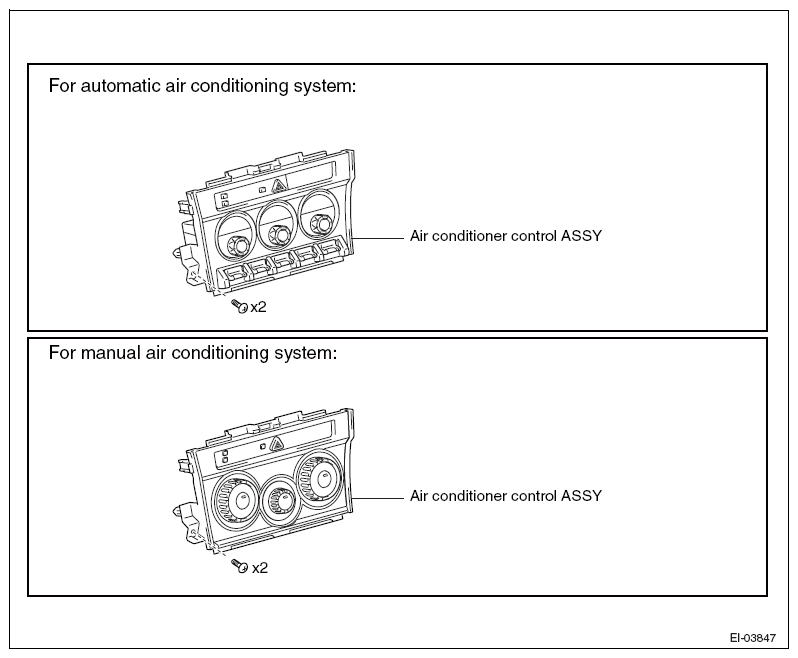

Fig 2: Exploded View Of Instrument Panel Lower (2 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

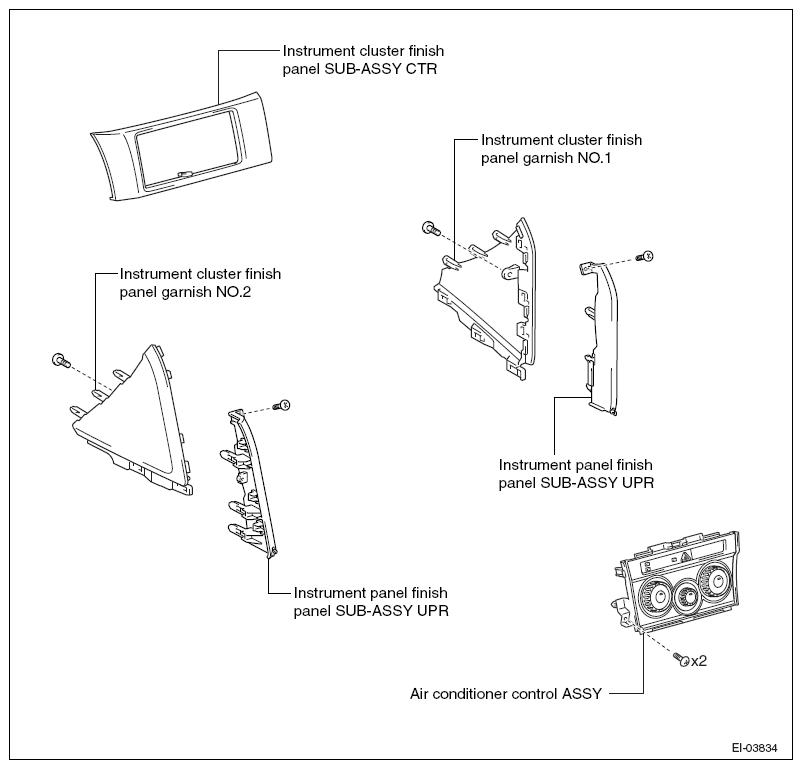

Fig 3: Exploded View Of Instrument Panel Lower (3 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

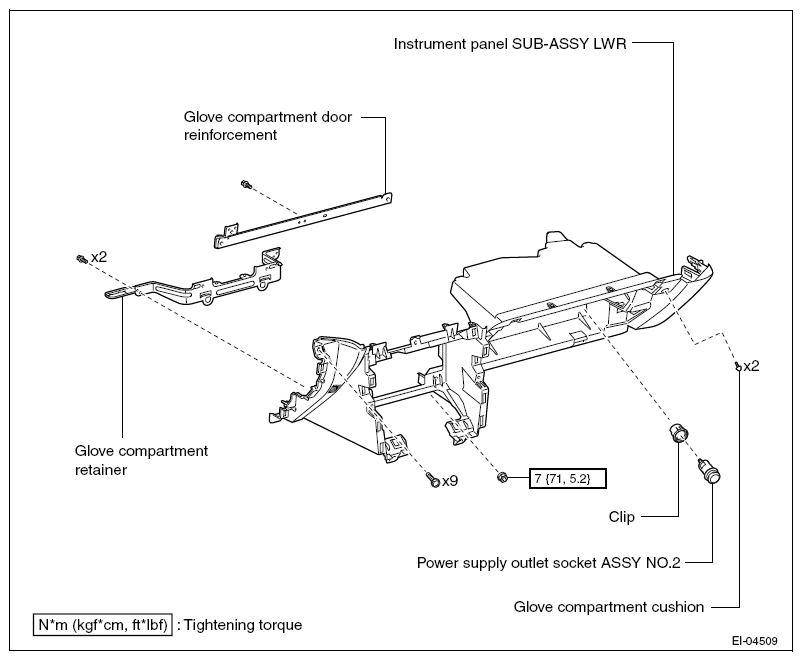

Fig 4: Exploded View Of Instrument Panel Lower With Torque Specifications (4 Of 4)
Courtesy of SUBARU OF AMERICA, INC.
