Exploded View

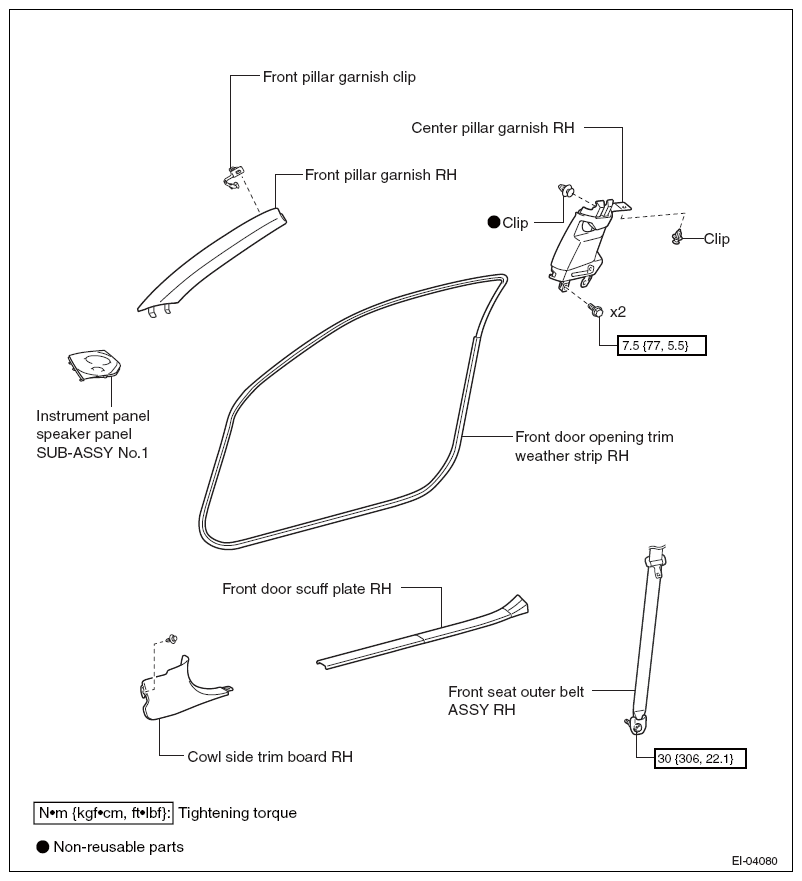

Fig 1: Exploded View Of Roof Head Lining With Torque Specifications (1 Of 7)

Courtesy of SUBARU OF AMERICA, INC.

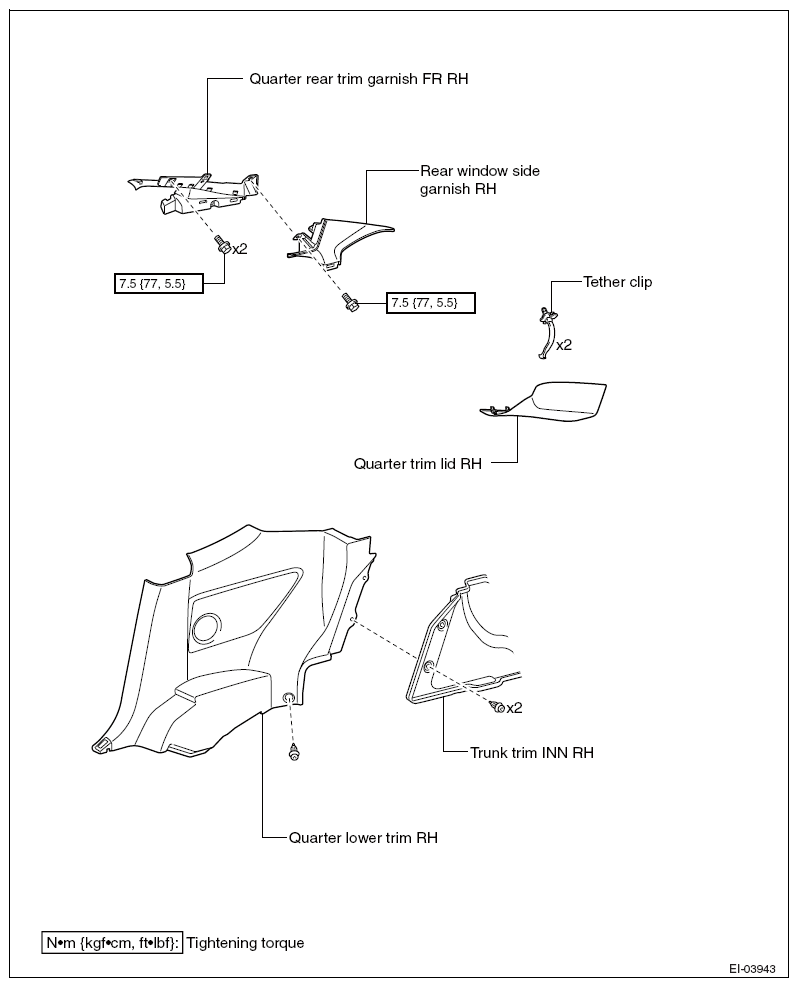

Fig 2: Exploded View Of Roof Head Lining With Torque Specifications (2 Of 7)

Courtesy of SUBARU OF AMERICA, INC.

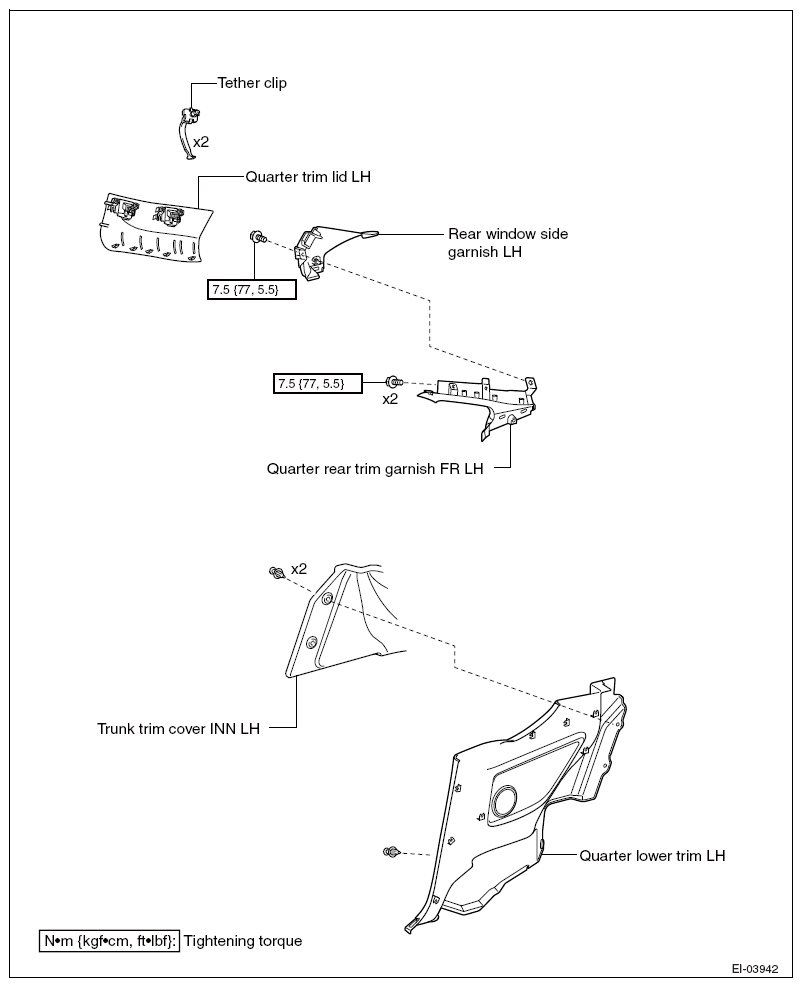

Fig 3: Exploded View Of Roof Head Lining With Torque Specifications (3 Of 7)

Courtesy of SUBARU OF AMERICA, INC.

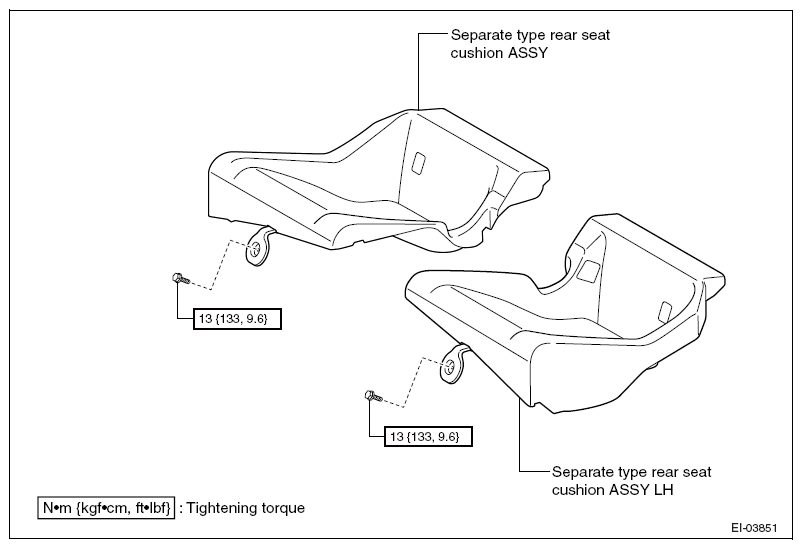

Fig 4: Exploded View Of Roof Head Lining With Torque Specifications (4 Of 7)

Courtesy of SUBARU OF AMERICA, INC.

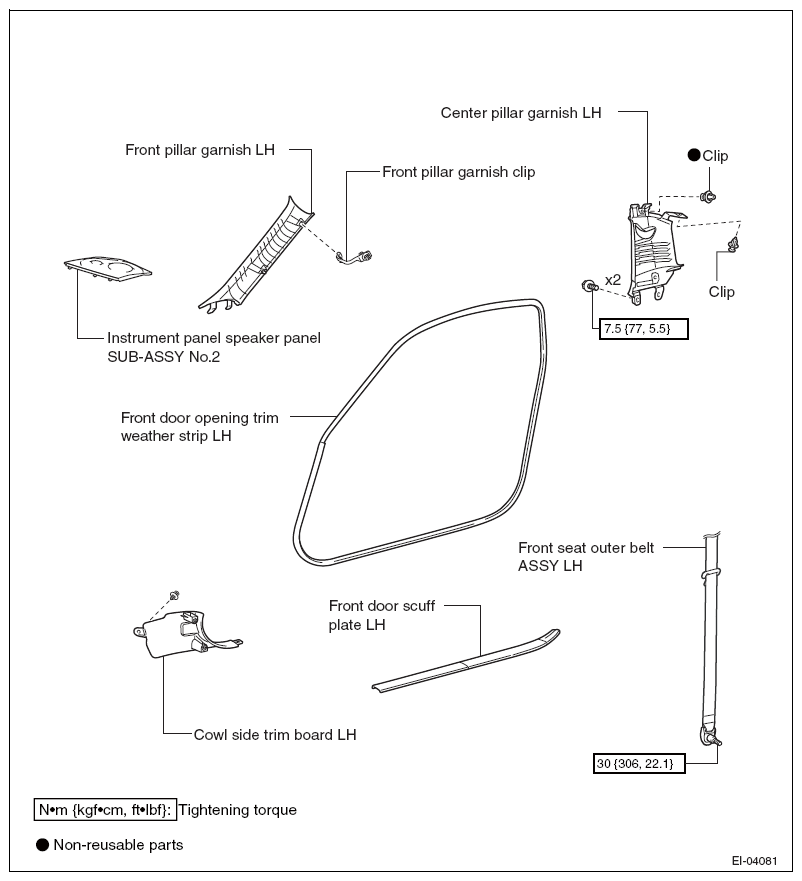

Fig 5: Exploded View Of Roof Head Lining With Torque Specifications (5 Of 7)

Courtesy of SUBARU OF AMERICA, INC.

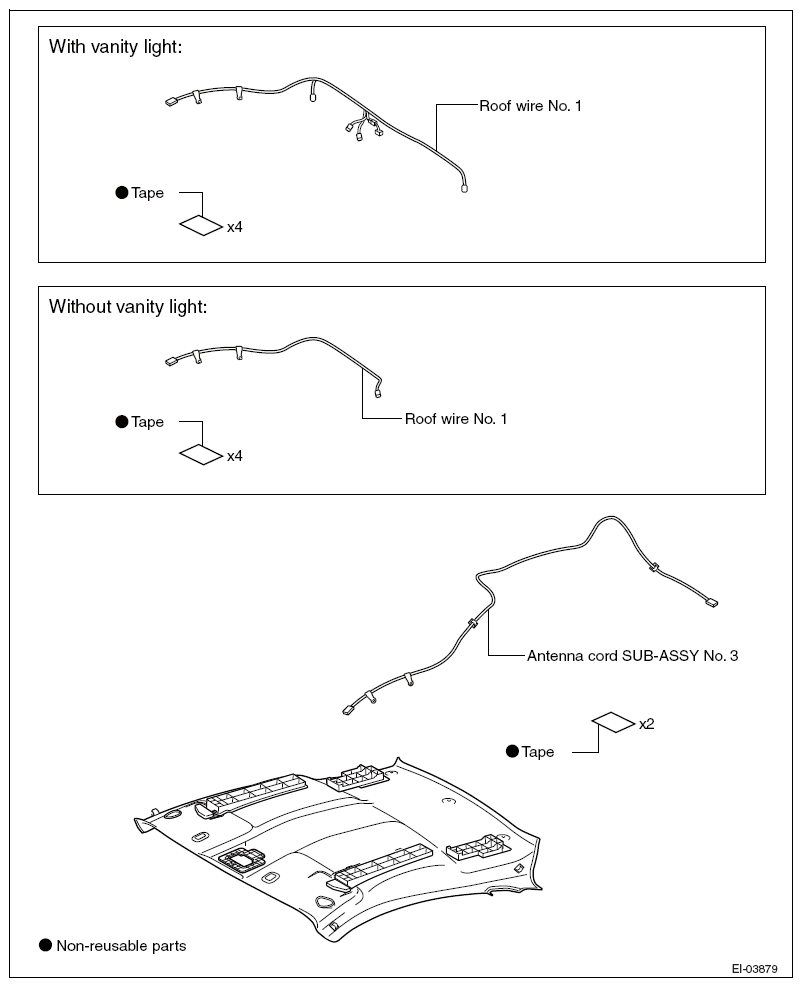

Fig 6: Exploded View Of Roof Head Lining (6 Of 7)

Courtesy of SUBARU OF AMERICA, INC.

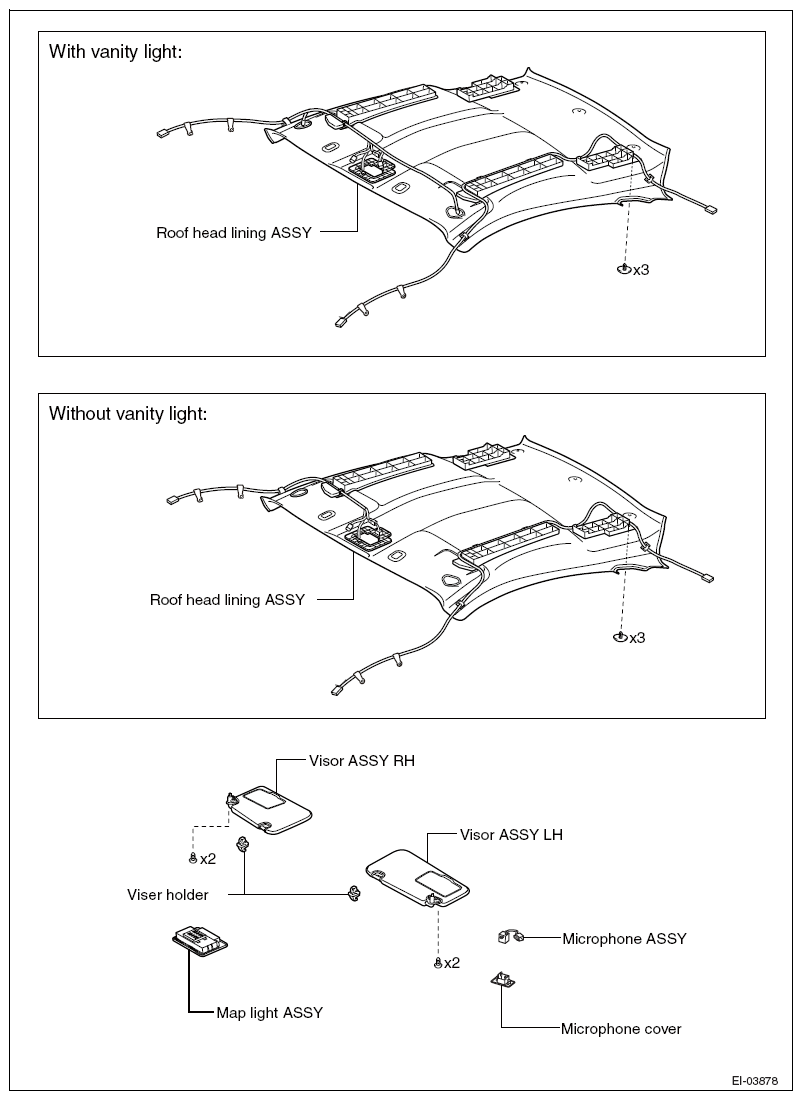

Fig 7: Exploded View Of Roof Head Lining (7 Of 7)

Courtesy of SUBARU OF AMERICA, INC.
