Entry Start System Entry System (Keyless Entry)
›
Entry & Start System (Entry Function)
›
Parts Location
Parts Location

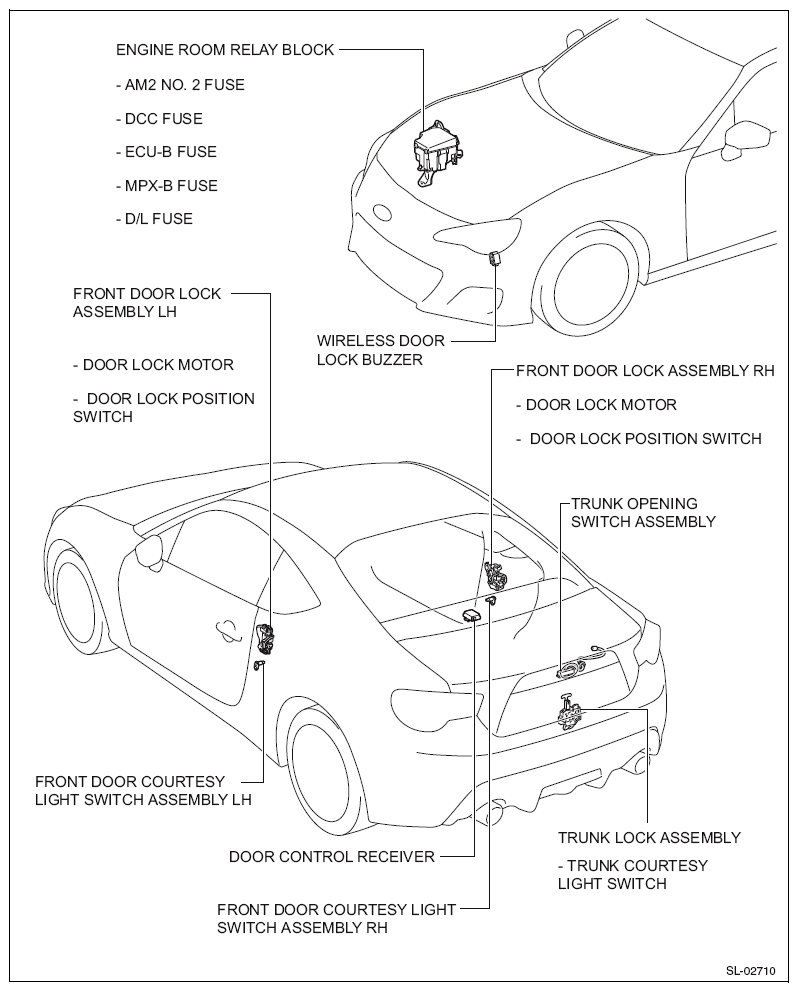

Fig 1: Anti-Theft System/Smart Entry Start System Parts Location (1 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

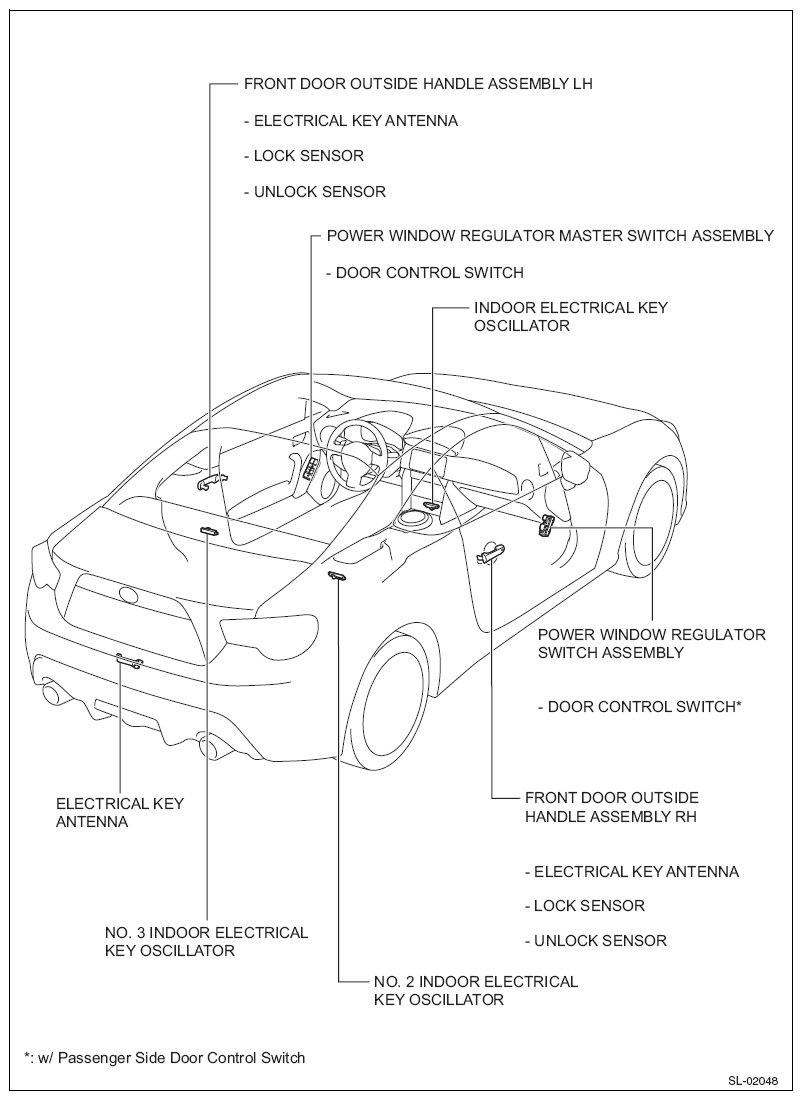

Fig 2: Anti-Theft System/Smart Entry Start System Parts Location (2 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

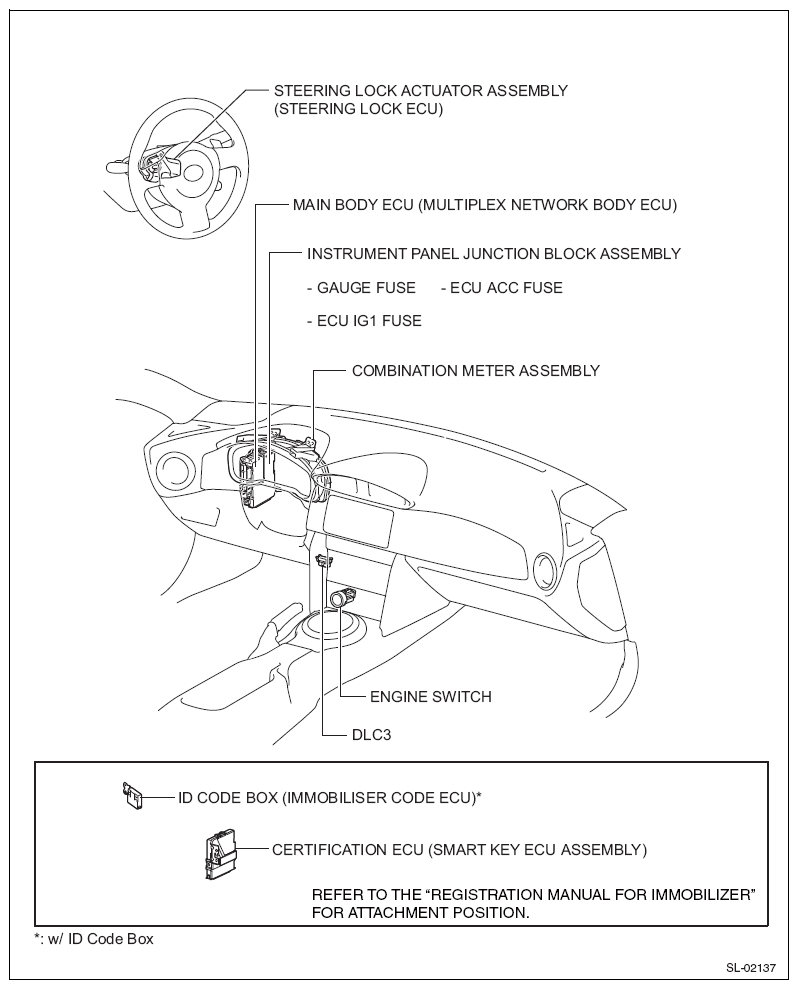

Fig 3: Anti-Theft System/Smart Entry Start System Parts Location (3 Of 4)
Courtesy of SUBARU OF AMERICA, INC.
Fig 4: Anti-Theft System/Smart Entry Start System Parts Location (4 Of 4)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
